Replace the oil pump chain - AR18.10-P-2140GZS (ML63 AMG): Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 164, 251
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with lifting platform | Model 164 | AR00.60-P-1000GZ |
| Model 251 | AR00.60-P-1000RT | ||
| 2 | Remove bottom engine compartment paneling | ||
| Model 164 | AR61.20-P-1105GZ | ||
| Model 251 | AR61.20-P-1105RT | ||
| 3 | Remove oil pan bottom section | AR01.45-P-7555GZS | |
| 4 | Remove oil pump | AR18.10-P-6020GZS | |

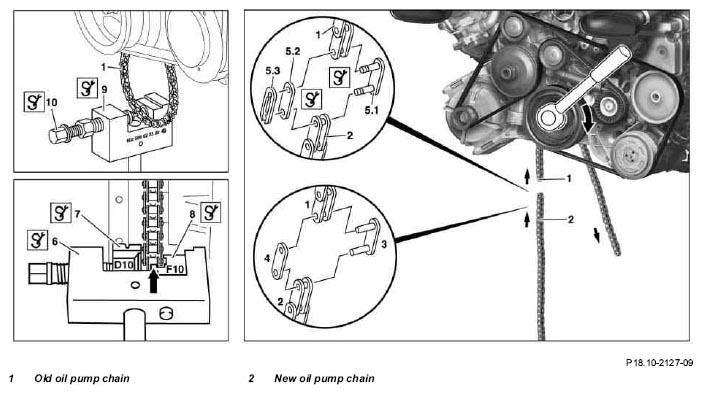

| 5 | Disconnect old oil pump chain (1) | AR18.10-P-2140-01AMG | |
| Figure | |||
| Figure | |||
| Figure | |||
| 6 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02AMG | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 7 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Conduct engine test run and check the engine for leaks |
