Remove/install rear axle shaft - AR35.30-P-0620CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207

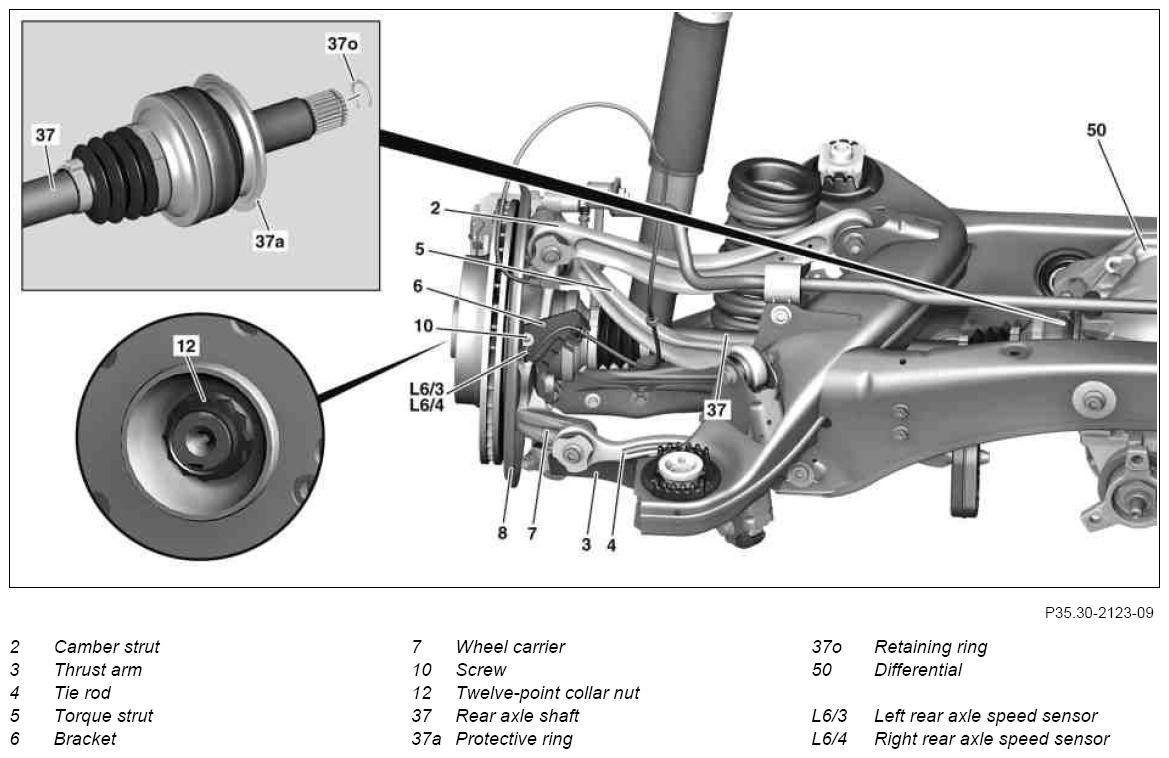

Fig 1: Identifying Rear Axle Shaft Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

21.6.11

Value modified: Filling capacity

Model 204 except model 204.077/277 with code 471, P30
Model 207

*BF35.31-P-1001-01T

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Installation: Only tighten bolts and nuts of the chassis components in the curb condition.
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove rear wheel
	Remove/install wheels		AP40.10-P-4050CW
3	Remove twelve-point collar nut (12) from rear axle shaft (37)	Installation: Replace twelve-point collar nut (12).	AR35.30-P-0115-01TX
			*BA35.30-P-1001-01J
4	Raise wheel carrier (7) using transmission jack and transmission platform until rear axle shaft (37) is roughly horizontal	Installation: Tighten threaded connections for rebound strut, camber strut and thrust arm (5, 2, 3) along with the tie rod (4).
			*BA35.20-P-1002-02I
			*BA35.20-P-1002-03I
			*BA35.20-P-1001-04I
			*BA35.20-P-1002-05G
5	Detach camber strut (2), torque strut (5), tie rod (4) and thrust arm (3) from wheel carrier (7)	Installation: Screw on bolted connections loosely.
6	Unclip electrical line of RPM sensor (L6/3 or L6/4) from bracket (6) on wheel carrier (7) and bracket on wheel arch
7	Unclip electrical line of brake wear sensor or right rear damping valve unit from bracket (6) on wheel carrier (7) and bracket on wheel arch	When removing right rear axle shaft (37) on vehicles with brake wear sensor or code (483) ADVANCED AGILITY package
8	Unclip electrical line of left rear axle damping valve unit from bracket (6) on wheel carrier (7) and bracket on wheel arch	When removing left rear axle shaft (37) on vehicles with code (483) ADVANCED AGILITY package
9	Lower wheel carrier (7)	Installation: raise wheel carrier (7) with transmission jack and transmission platform until rear axle shaft (37) is almost horizontal.
10	Fold down wheel carrier (7) and pull rear axle shaft (37) out of rear axle shaft flange	If the rear axle shaft (37) is difficult to remove: ↓ Press rear axle shaft (37) out of rear axle shaft flange.	AR35.30-P-0115-03SX
			Figure
			Figure
11	Lever rear axle shaft (37) out of rear axle center assembly (50)	Do not fasten assembly lever to the protective ring (37a). Support assembly lever e.g. with socket wrench on differential (50).
12	Take out rear axle shaft (37)	Installation: Install new retaining ring (37o) on inner splined profile.
	Checking
13	Check constant velocity joints and rubber boots	If the constant velocity joint is defective, the rear axle shaft (37) must be completely replaced. If damaged or leaking: ↓ Replace constant velocity joint or rubber boot on rear axle shaft.	AR35.30-P-0661P
14	Check radial sealing ring on side of rear axle differential (50)	If damaged or leaking: ↓ Replace radial sealing ring on side of differential (50).	AR35.31-P-0545CW
15	Install in the reverse order
16	Check oil level in differential (50) and correct if necessary		AR35.31-P-0520-03SX
			*BA35.31-P-1002-02H
			*BF35.31-P-1001-01T
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
17	Perform wheel alignment check	Model 204	AR40.20-P-0200CW
		Model 207	AR40.20-P-0200EW

CAMBER STRUT

Number	Designation				Model 204	Model 207
BA35.20-P-1002-02I	Self-locking nut, camber strut to wheel carrier.	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90

TIE ROD

Number	Designation			Model 204	Model 207
BA35.20-P-1001-04I	Self-locking nut, tie rod at wheel carrier	Stage 1	Nm	50	50
		Stage 2	∠°	90	90

TORQUE STRUT

Number	Designation				Model 204	Model 207
BA35.20-P-1002-03I	Self-locking nut, torque strut to wheel carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90

THRUST ARM

Number	Designation				Model 204	Model 207
BA35.20-P-1002-05G	Self-locking nut, thrust arm to wheel carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90

REAR AXLE SHAFT

Number	Designation				Model 204	Model 207
BA35.30-P-1001-01J	Collar nut, rear axle shaft to rear axle shaft flange	self-locking		Nm	350	350
	Collar nut, rear axle shaft to rear axle shaft flange	not self-locking	Stage 1	Nm	170	170
			Stage 2	∠°	45	45

DIFFERENTIAL HOUSING

Number	Designation		Model 204	Model 207
BA35.31-P-1002-02H	Oil filler screw, differential	Nm	50	50

DIFFERENTIAL

Number	Designation			Model 204 except model 204.077/277/377 with code 471, P30	Model 204.077/277/37 7 with code 471, P30
BF35.31-P-1001-01T	Filling capacity	Differential 187 FE, Ø 187 mm	Liters	0.95	-
			Sheet	BB00.40-P-0235-07A	-
		Differential 200 FE, Ø 200 mm	Liters	1.1	-
			Sheet	BB00.40-P-0235-07A	-
		Differential 215 FE, Ø 215 mm	Liters	1.2	1.2
			Sheet	BB00.40-P-0235-07A	BB00.40-P-0235-61A

DIFFERENTIAL

Number	Designation			Model 207
BF35.31-P-1001-01T	Filling capacity	Differential 187 FE, Ø 187 mm	Liters	0.95
			Sheet	BB00.40-P-0235-07A
		Differential 200 FE, Ø 200 mm	Liters	1.1
			Sheet	BB00.40-P-0235-07A
		Differential 215 FE, Ø 215 mm	Liters	1.2
			Sheet	BB00.40-P-0235-07A

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
