Remove/install wheels, rotate if necessary - AP40.10-P-4050CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207

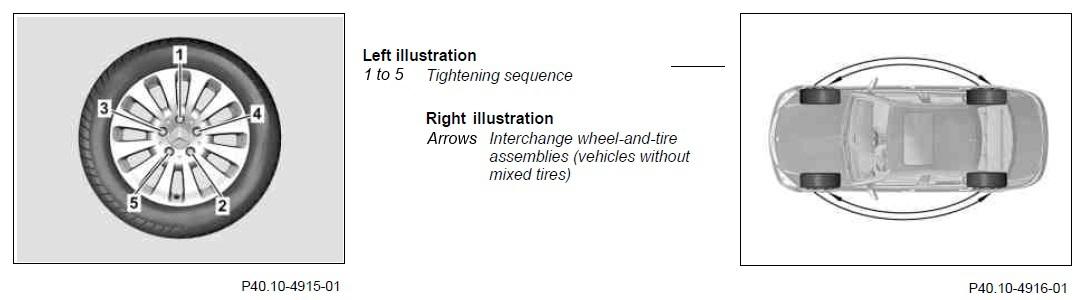

Fig 1: Wheel Bolts Tightening Sequence And Interchange Wheel-And-Tire Assemblies Diagram

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Hoist vehicle with lifting platform until wheels are free
2	Pull off wheel covers	Vehicles with wheel covers
3	Unscrew wheel bolts and remove wheel-and-tire assemblies		Fig 2
	Checking
4	Check tires for damage and condition, measure tread depth and note down measurements on maintenance sheet		AP40.10-P-4051CW
	Information on tires / rims		AH40.10-P-9411-01A
5	Clean and check wheel bolt connection components, then protect against corrosion	Before mounting a wheel-and-tire assembly all the operation steps listed in the linked description must be conducted carefully. Otherwise the wheel-and-tire assembly may work its way loose from the vehicle and cause damage to people, property or the environment!	AP40.10-P-4050-01A
5		Paste, hot lubrication 1 kg, DB supply specification 6879.20	*BR00.45-Z-1005-06A
	Install
6	Change round wheel-and-tire assemblies on front and rear axles	As required, and only on vehicles without mixed tires Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
7	Mount wheel-and-tire assembly and tighten wheel bolts	Observe the tightening sequence (1 to 5) and tightening torque.
7	Mount wheel-and-tire assembly and tighten wheel bolts	Wheel bolt	*BA40.10-P-1001-01M
8	Lower vehicle
9	Correct tire pressure for all wheel-and-tire assemblies	In the event of tire pressure loss, establish cause and replace valve, tire or rim: ↓ Replace tire:	AR40.10-P-1030CW

10	Fit wheel covers	Vehicles with wheel covers
11.1	Activate the tire pressure monitoring system	With CODE 470 (Tire pressure monitor (Basis)) or with CODE 475 (Tire pressure monitor (Schrader)) Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure. Restart tire pressure monitor:	AR54.30-P-1000-02RAT
11.2	Activate tire pressure loss warner	Except CODE 470 (Tire pressure monitor (standard)) and except CODE 475 (Tire pressure monitor) Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.
Restart tire pressure loss warning:	AR54.30-P-1000-02RAC

WHEELS

Number	Designation		MODEL 204.0/2/3 except CODE P98
BA40.10-P-1001-01M	Wheel bolt	Nm	130

Fig 2: Identifying Socket Wrench (199 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
