Retrofit satellite radio (SDAR) - AZ82.60-P-0006T: Notes

MODEL 211.0## 1# with CODE (494) USA version with CODE (806) Model year 2006 except CODE (413) Panoramic sliding roof except CODE (924) Bivalent natural gas drive

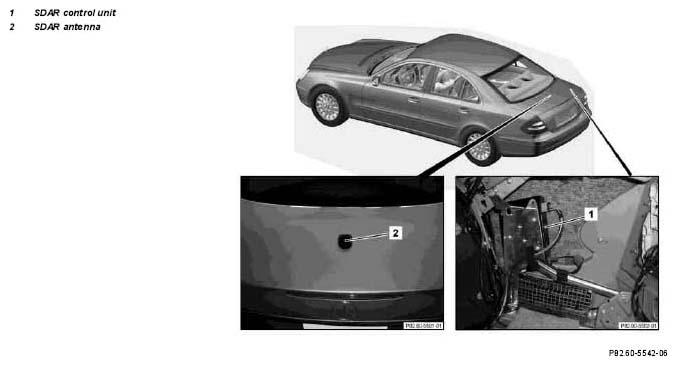

Fig 1: Identifying SDAR Control Unit And SDAR Antenna Location

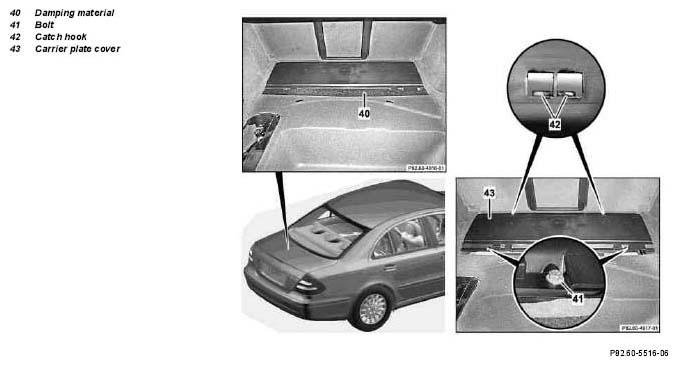

Fig 2: Identifying Damping Material, Catch Hook, Carrier Plate Cover Ans Bolt

	Removal
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground cable
			AR54.10-P-0003T
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
2	Remove trim from rear end center assembly
			AR68.30-P-4785T
3	Remove side paneling in trunk	On left and right.
		Vehicles without  through-loading feature (code 287).	AR68.30-P-4800T
		Vehicles with  through-loading feature (code 287).	AR68.30-P-4800TA
4	Remove soundproofing (40), remove bolts (41) (see enlarged detail at bottom), use suitable tool to release catch hook (42) (see enlarged detail at top) and remove cover on carrier plate (43)
5	Remove paneling from trunk lid
			AR68.30-P-8150T
	Install
6	Retrofit satellite radio control unit		AZ82.60-P-0006-01T
	Risk of explosion  and caused poisoning by solvent vapors and gasses. Risk of injury  to skin and eyes when working with corrosion protection agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
7	Retrofit satellite radio antenna		AZ82.60-P-0006-02T
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
8	Retrofit antenna line	Antenna line for satellite radio (SDAR).	AZ82.70-P-0002-01T
9	Retrofit MOST fiber optic cable wiring harness	MOST fiber optic cable wiring harness for satellite radio (SDAR).	AZ82.60-P-0006-03T
10	Retrofit wiring harness.	Wiring harness for satellite radio (SDAR).	AZ82.70-P-0001-04TA
11	Install in the reverse order	Steps 5 up to 1.
12	Perform basic programming
			AR00.19-P-0200T
13.1	Flash MOST components	Flash those MOST components that do not have the latest software release.
		Programming of control units	AR54.21-P-0014Y
		STAR DIAGNOSIS diagnosis system.	*WH58.30-Z-1048-13A
14	Perform version coding subsequently	Perform variant coding using STAR DIAGNOSIS to activate the satellite radio (SDAR) functions. After completing variant coding, perform a quick test and delete the fault memory.
		STAR DIAGNOSIS diagnosis system.	*WH58.30-Z-1048-13A
15	Carry out function check of satellite radio (SDAR).
16	Add special equipment to the vehicle data card and to the on-line vehicle data card	Enter SIRIUS satellite radio (code 536).
