Retrofit antenna line - AZ82.70-P-0002-01T

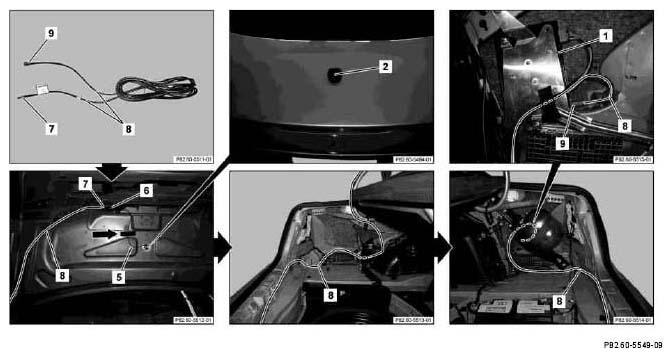

- Connect antenna plug (6) of SDAR antenna (2) to antenna coupling (7) of antenna extension line (8).
- Route antenna extension line (8) along on-board wiring harnesses as per picture in the trunk lid and fasten such that they do not chafe.
- Route antenna line (5) of SDAR antenna (2) as per picture in the trunk lid and fasten in place using self-adhesive felt (see arrow).
- Route antenna extension line (8) along on-board wiring harnesses as per picture onto trunk lid hinge and into the luggage compartment and fasten such that it does not chafe.
- Route antenna extension line (8) along on-board wiring harnesses as per picture from left to right side of luggage compartment on the rear center section to the SDAR control unit (1) and fasten such that it does not chafe.
- Connect antenna plug (9) of antenna extension line (8) as per picture onto SDAR control unit (1).
The antenna extension line (8) is fastened at a later stage together with the SDAR wiring harness to the bracket of the SDAR control unit (1) using self-adhesive felt.
