Remove/install trunk lid paneling - AR68.30-P-8150T

MODEL 211.0

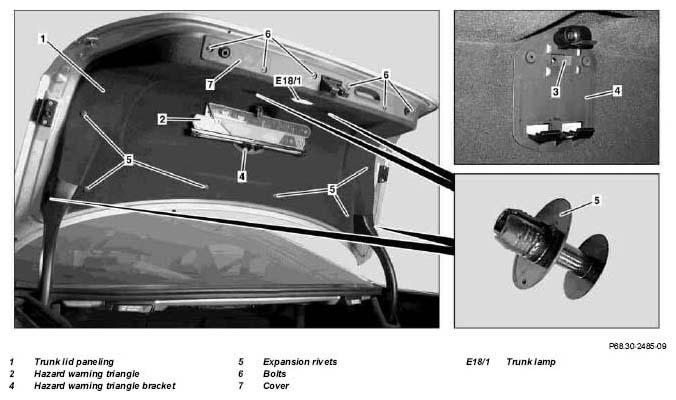

Fig 1: Identifying Trunk Lid Paneling

MODIFICATION NOTES

8.1.04

"Disconnect/connect battery ground line" removed

	Remove/install
1	Switch off luggage compartment lamp (E18/1) by locking trunk lid lock with suitable screwdriver	Installation:  Actuate opening handle on outside of trunk lid to unlock trunk lid lock.
2	Remove warning triangle (2)
3	Remove hazard warning triangle bracket (4)
4	Remove expansion rivets (5)
5	Unscrew screws (6) and remove cover (7)
6	Remove luggage compartment lamp (E18/1)
7	Remove trunk lid paneling (1)
8	Install in the reverse order
