Remove/install instrument panel lower section on driver side - AR68.10-P-1505Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209
Shown on vehicle with code 352 COMAND operating and display system
MODIFICATION NOTES
| 23.1.04 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| 1 | Remove center console | Model 209 without code P98 Black Series | AR68.20-P-2000Q |
| Model 209 with code P98 Black Series | AR68.20-P-2000QBS | ||
| 2 | Remove center console cover (3) | AR68.20-P-2350Q | |
| 3 | Remove instrument cluster | AR54.30-P-6015P | |
| 4 | Remove light switch module (S1) | AR54.25-P-3270P | |
| 5.1 | Loosen COMAND operating, display and controller unit (A40/3) | up to 31.5.04 with code 352 COMAND operating and display system, with code 498 Japanese version |
AR82.85-P-7472Q |
| as of 1.6.04 with code 498 Japanese version, with code 527 COMAND APS (with navigation), with code 530 COMAND APS USA (with navigation) |
AR82.85-P-7472QA | ||
| 5.2 | Loosen radio | up to 31.5.04 with code 756 Radio MB Audio 10 CD with VK/RDS |
AR82.60-P-7502Q |
| as of 1.6.04 | AR82.60-P-7502QA | ||
| up to 31.5.04 with code 353 Audio 30 APS | AR82.61-P-7412P | ||
| as of 1.6.04 with code 525 Radio MB Audio 50 APS |
AR82.61-P-7412QA | ||

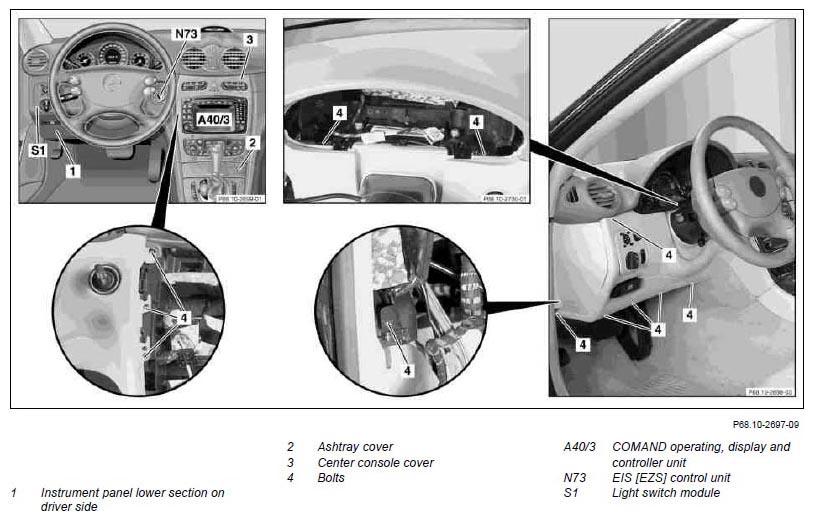

| 6 | Remove bolts (4) | ||
| 7 | Remove cover below instrument panel on left with lines connected and hood release cable hooked in | ||
| 8 | Unscrew trim ring from EIS control unit (N73) | Fig 3 | |
| 9 | Unclip instrument panel lower section (1) on driver side and remove. | Figure | |
| 10 | Unhook release cable for foot-operated parking brake from operating lever | ||
| 11 | Remove EIS control unit (N73) from instrument panel lower section on driver side (1) | ||
| 12 | Install in the reverse order |
