Remove/install center console - AR68.20-P-2000QBS

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209 with CODE (P98) Black Series

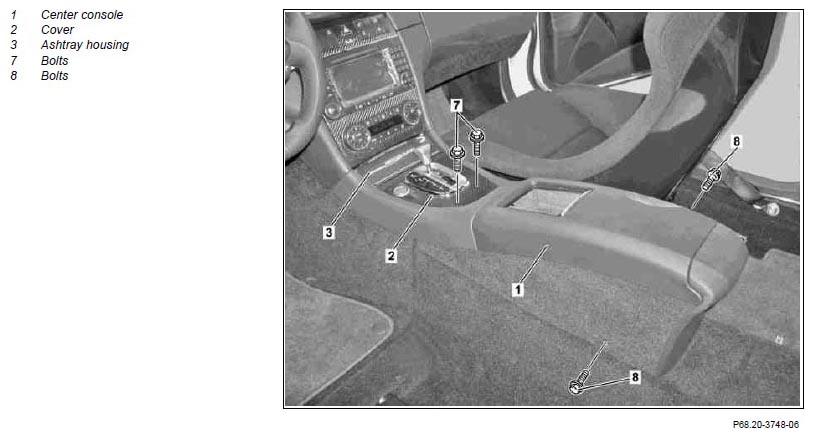

Fig 1: Identifying Center Console Components

Courtesy of MERCEDES-BENZ USA

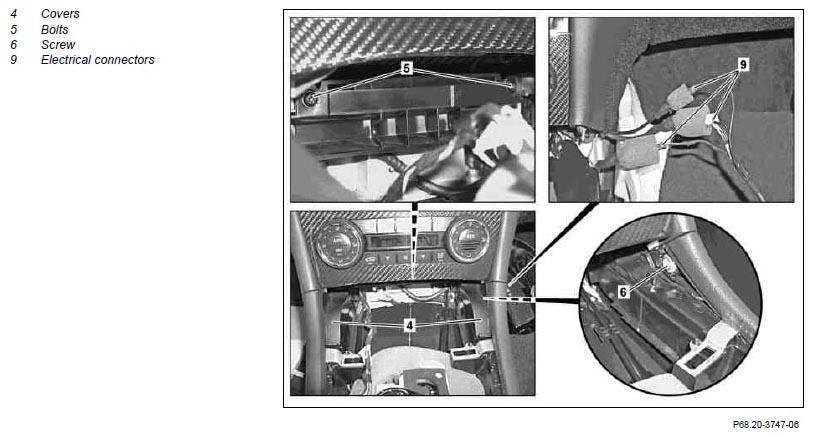

Fig 2: Identifying Electrical Connectors, Covers, Bolts And Screw

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover on gearshift lever		AR68.20-P-2310QBS
2	Remove ashtray housing (3)	Installation: Check ashtray housing mechanism (3) for proper function, if necessary loosen threaded connection of center console (1) and tighten center console (1) without tension.	AR68.20-P-2400P
3	Unclip covers (4) in installation opening of ashtray housing (3).
4	Remove bolts (5)	Installation: Ensure that center console (1) is installed without tension.
5	Remove bolts (7) on shift gate.	Installation: Ensure that center console (1) is installed without tension.
6	Remove bolts (8)	Installation: Ensure that center console (1) is installed without tension.
7	Loosen bolt (6) approx. one half turn on left and right	to unlock arresting pins on center console (1).
8	Pullout floor covering at transition area between center console (1) and upper control panel in front passenger footwell and disconnect electrical connectors (9).
9	Remove center console (1)
10	Reinstall in opposite order
