Remove/install cover on center console - AR68.20-P-2350Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209
MODIFICATION NOTES
| 29.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||

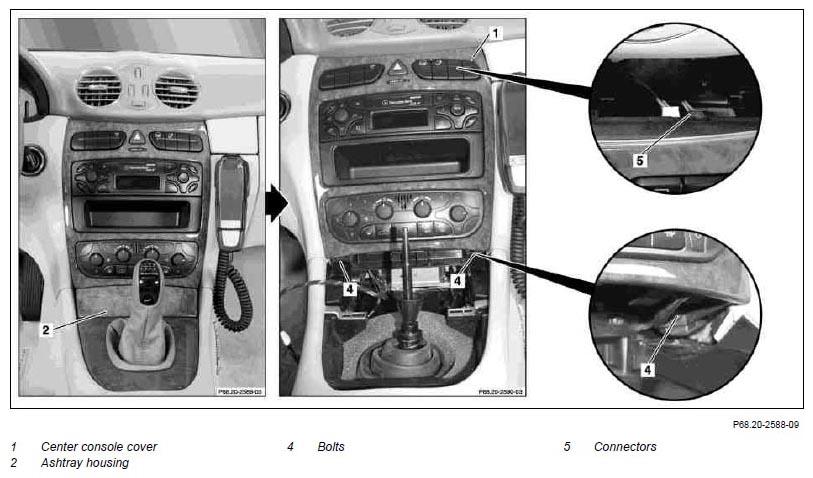

| 1 | Remove ashtray housing (2) from front center console | AR68.20-P-2400P | |
| 2 | Remove bolts (4) | ||
| 3 | Remove cover from center console (1) | ||
| 4 | Disconnect couplings (5) at upper control panel control unit (N72/1) | ||
| 5.1 | Disconnect couplings at automatic heater and air conditioning | With code (581b) Comfort automatic air conditioning | |
| 5.2 | Disconnect couplings at automatic air conditioning | Except code (581b) Comfort automatic air conditioning | |
| 6 | Install in the reverse order |
