Remove/install APS radio and navigation control unit - AR82.61-P-7412QA
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 as of 1.6.04 with CODE (525) MB Audio 50 APS radio
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
| 1.1 | Transfer basic data from radio and navigation unit (A2/56) to STAR DIAGNOSIS | When replacing radio and navigation unit (A2/56). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove upper control panel control unit. | AR54.21-P-1262Q | |
| 3 | Remove control and operating unit | AR83.40-P-6350QA | |

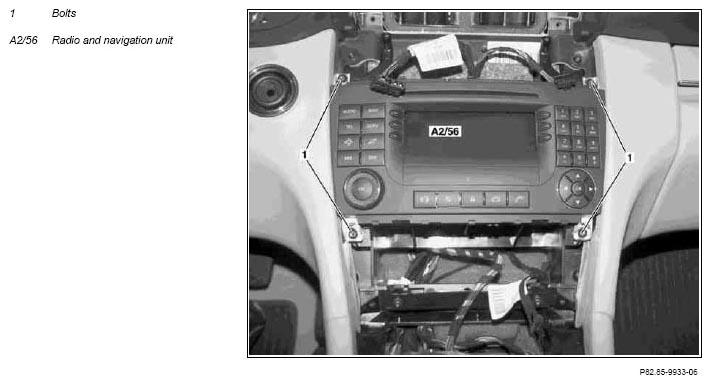

| 4 | Remove bolts (1) | ||
| 5 | Take out radio and navigation unit (A2/56) | ||
| 6 | Disconnect connectors from radio and navigation unit (A2/56) | ||
| 7 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| Notes on fiber optic cable | Model 129, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 230, 414, 463.243/244/245/246/247/248/249/250/254/309/322/323/332/333 | AH82.70-P-0001-02A | |
| 8 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
