Remove/install light switch module - AR54.25-P-3270P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209

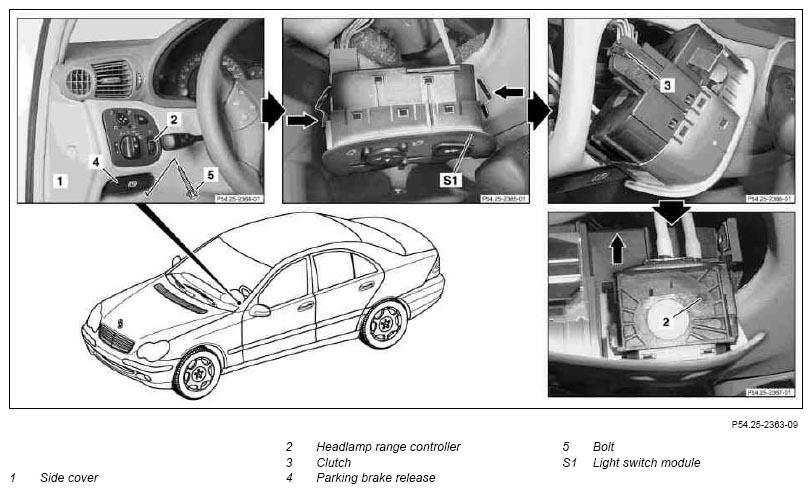

Illustrated on model 203.0
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | ||
| 1 | Remove side cover (1) | |
| 2 | Remove screw (5) | |
| 3 | Unclip and remove lamp switch module (S1) | |
| 4 | Release connector (3) and disconnect | |
| 5 | Unlock headlamp range adjuster (2) and detach from lamp switch module (S1) (arrow) | Except code (612b) xenon headlamp unit |
| 6 | Install in the reverse order |
