Rear SAM control module with fuse and relay module, location/task - GF54.21-P-4130Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.3

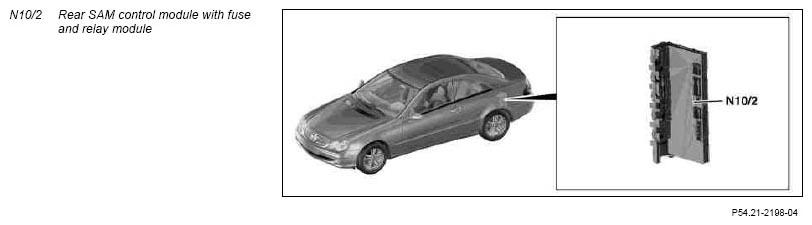

| Rear SAM control module with fuse and relay module, location | The rear SAM control module with fuse and relay module (N10/2) is located on the left inner wheelhouse in the luggage compartment. | |
| Rear SAM control module with fuse and relay module, task | General | GF54.21-P-4112-01Q |
| Trunk lid control | GF54.21-P-4112-01QB | |
| Supplemental restraint system (SRS) | GF54.21-P-4112-01QD | |
| Fuel level gauge | GF54.21-P-4112-01QE | |
| Rear exterior lights, trunk lighting | GF54.21-P-4112-01QF | |
| Rear window defroster | GF54.21-P-4112-01QG | |
| Code (551a) anti-theft alarm system (ATA) | GF54.21-P-4112-01QA | |
| Code (540a) electrical roller blind for rear window | GF54.21-P-4112-01QC |
