Remove/install partition wall on upper firewall - AR62.20-P-1221A
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209
| Remove/install | |||
| 1 | Disconnect ground line of battery | Model 203 | AR54.10-P-0003P |
| Model 209 | AR54.10-P-0003Q | ||
| 2 | Drain coolant at radiator | Engine 611.962 in model 203.004/006/204/206/706 Engine 612.962 in model 203.016/216 Engine 612.990 in Model 203.018/218/718 Engine 612.967 in model 209.316 Engine 646.962 in model 203 Engine 646.963 in model 203 Engine 646.966 in model 209 |
AR20.00-P-1142HB |
| Engine 642 | AR20.00-P-1142PI | ||
| Engines 111, 271 in model 203 Engine 271 in model 209 |
AR20.00-P-1142PR | ||
| Engine 112.912 in model 203.061/261, 209.361/461 Engine 112.955 in model 209.365/465 Engine 112.961 in model 203.065/265 Engine 113.968 in model 209.375/475 Engine 113.987 in model 209.376/476 Engine 112.946 in model 203.064/264/764 Engine 112.916 in model 203.081/281 Engine 112.953 in model 203.084/284 Engine 113.988 in model 203.076/276 |
AR20.00-P-1142PV | ||
| Engine 272.920 in model 203.052/252/752 Engine 272.940 in model 203.054/254, 209.354/454 Engine 272.960 in model 203.056/256/756, 209.356/456 Engine 272.970 in model 203.087/287 Engine 272.941 in model 203.092/292 Engine 273 in model 209 |
AR20.00-P-1142QB | ||
| Engine 112.961 in model 203.065/265 | AR20.00-P-1142RVK | ||
| Engine 156.982 in model 209.377/477 | AR20.00-P-1142TMG | ||
| 3 | Remove washer fluid reservoir of windscreen washer system | Model 209 with code (P98) Black Series | AR82.35-P-6000QBS |
| 4 | Remove strut tower brace | Vehicles with code (P98) Black Series | AR62.30-P-2500QBS |

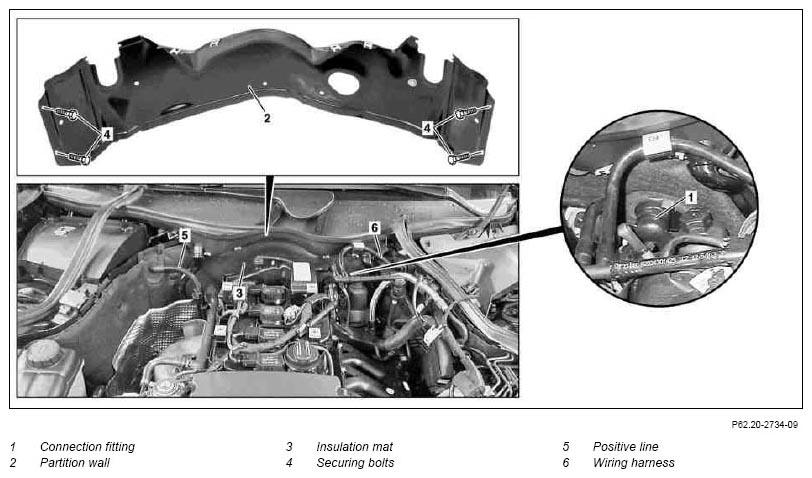

| 5 | Detach coolant line from connection fitting (1). | ||
| 6 | Loosen connection fittings (1) from partition wall (2) | ||
| 7 | Loosen damping mat (3) and lay down on right side | ||
| 8.1 | Disconnect positive line (5) from battery and pull upward out of partition wall (2) | Model 209 without code (P98) Black Series, Model 203 | |
| 8.2 | Disconnect positive line (5) from terminal point and pull upward out of partition wall (2) | Model 209 with code (P98) Black Series |
|
| 9 | Pull wiring harness (6) upward out of partition wall (2) | ||
| 10 | Unscrew mounting bolts (4) and remove partition wall (2) from firewall | ||
| 11 | Install in the reverse order |
