Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000QBS
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 with CODE (P98) Black Series
| Remove/install | |||
| 1 | Remove dust filter | ||
| Replace dust filter for heating/air conditioning | AP83.00-P-8381P | ||

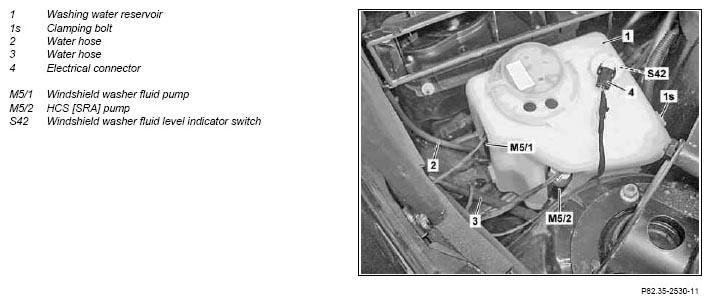

| 2 | Detach electrical connector (4) from windshield washer fluid level indicator switch (S42) | ||
| 3 | Release clamp bolt (1s) and lift washer fluid reservoir (1) | ||
| 4 | Remove windshield washer fluid pump (M5/1) and place to one side with lines attached | ||
| 5 | Remove HCS [SRA] pump (M5/2) and place to one side with lines attached | ||
| 6 | Take out washer fluid reservoir (1) | ||
| 7 | Remove windshield washer fluid level indicator switch (S42) | When replacing the washer fluid reservoir | |
| 8 | Install in the reverse order | ||
| 9 | Correct windshield washer system fluid level | ||
| Check windshield washer system fluid level and correct if necessary | AP82.35-P-8210P |
