Disconnect/connect battery ground line - AR54.10-P-0003Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209
| Remove/install | |||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1.1 | Remove left seat shell in rear | Vehicles with code P98 Black Series | AR68.30-P-4782QBS |
| 1.2 | Remove dust filter housing | Vehicles without code P98 Black Series | |
| 2 | Deactivate backup battery | Only on vehicles with code (349) E Call emergency call system or with code (494) USA version. | |

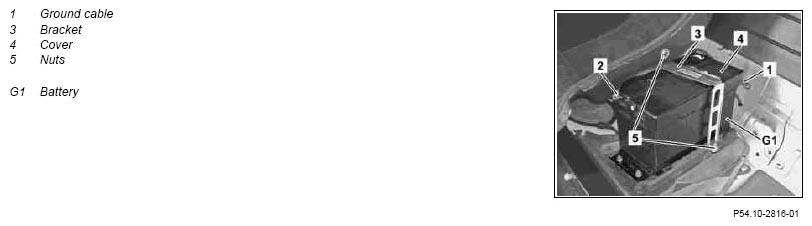

| 3 | Detach nuts (5) and remove bracket (3) | Vehicles with code P98 Black Series | |
| 4 | Remove cover (4) of battery (G1) | Vehicles with code P98 Black Series | |

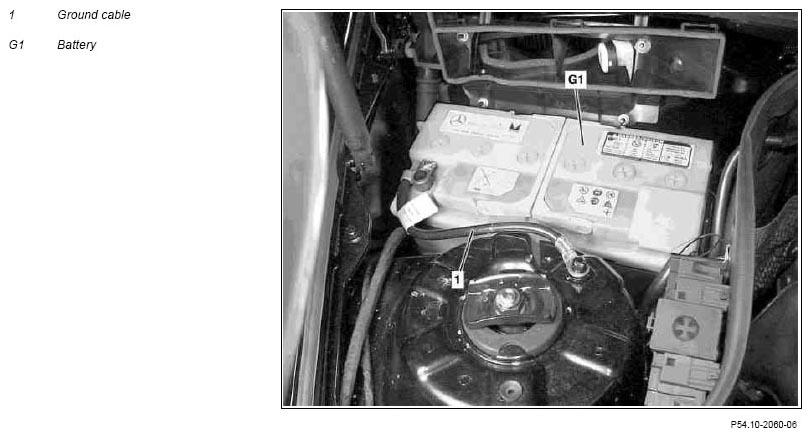

| 5 | Detach ground line (1) at ground (battery) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform basic programming | AR00.19-P-0200Q |
