Remove/install strut tower brace - AR62.30-P-2500QBS
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 with CODE (P98) Black Series
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Open engine hood and raise to vertical position | ||
| Remove strut tower brace with brackets | |||

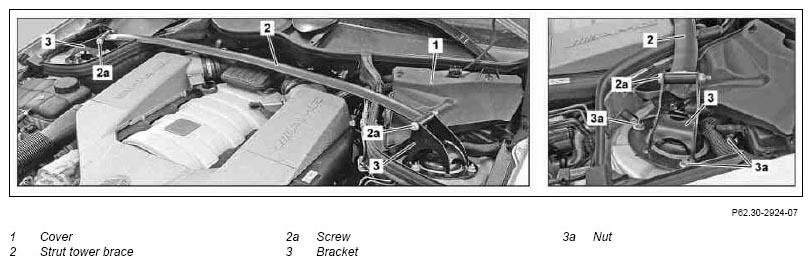

| 2 | Remove cover (1) above brake fluid expansion reservoir | ||
| Risk of injury caused by moving parts that can pinch, crush or , in extreme cases, even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| 3 | Unscrew nuts (3a) from bracket (3). | ||
| *BA32.25-P-1006-01E | |||
| 4 | Remove strut tower brace (2) with brackets (3). | ||
| 5 | Secure support bushing with nuts (3a) in suspension strut tower. | ||
| 6 | Install in the reverse order | ||
| Remove strut tower brace without bracket | |||
| 7 | Unscrew bolts (2a) and remove strut tower brace (2) from brackets (3). | ||
| *BA62.30-P-1018-02A | |||
| 8 | Install in the reverse order |
FRONT AXLE SHOCK ABSORBER
| Number | Designation | Model 209 with code P98 | |
|---|---|---|---|
| BA32.25-P-1006-01E | Nut for support bushing and bracket for strut tower brace to body | Nm | 55 |
FRONT END ASSEMBLY WITH FRONT REINFORCEMENT
| Number | Designation | Model 209 | |
|---|---|---|---|
| BA62.30-P-1018-02A | Nut, strut tower brace to bracket | Nm | 42 |
