Remove/install antenna amplifier module - AR82.62-P-8300PA

MODEL 203.2

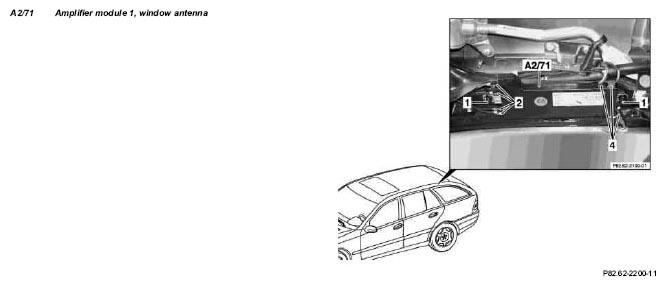

Fig 1: Identifying Antenna Amplifier Module Remove/Install Components - Model 203.2 (1 Of 3)

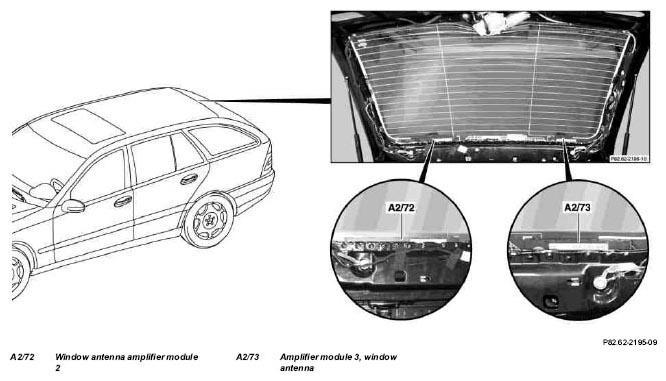

Fig 2: Identifying Antenna Amplifier Module Remove/Install Components - Model 203.2 (2 Of 3)

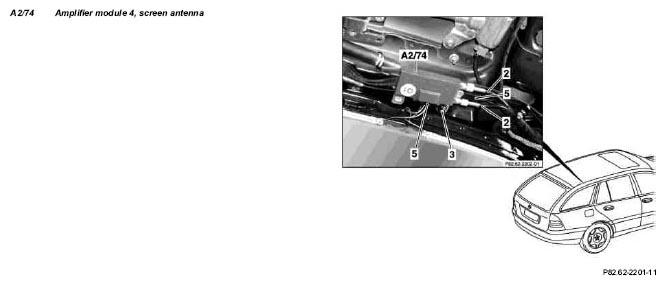

Fig 3: Identifying Antenna Amplifier Module Remove/Install Components - Model 203.2 (3 Of 3)

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1.1	Remove tailgate window	Only if removing window antenna amplifier module 2 (A2/72) and window antenna amplifier module 3 (A2/73).	AR67.20-P-3550PA
1.2	Remove rear roof frame trim	Only if removing window antenna amplifier module 1 (A2/71) and window antenna amplifier module 4 (A2/74).	AR68.30-P-4470PA
2	Remove amplifier module of the window antenna	Amplifier module 1, window antenna (A2/71)	AR82.62-P-8300-01P
		Amplifier module 2, window antenna (A2/72)	AR82.62-P-8300-02P
		Amplifier module 3, window antenna (A2/73)	AR82.62-P-8300-03P
		Amplifier module 4, window antenna (A2/74)	AR82.62-P-8300-04P
3	Install in the reverse order
