Remove/install left amplifier module for window antenna at roof frame - AR82.62-P-8300-01P

  1. Unscrew nuts (1).
  2. Release antenna lines (2) and disconnect
  3. Detach couplings (4) from window antenna amplifier module 1 (A2/71).
  4. Remove window antenna amplifier module 1 (A2/71).

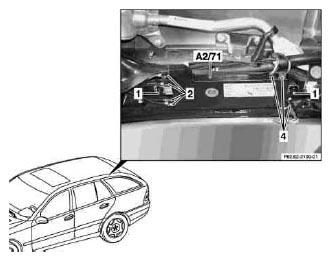

    Fig 1: Identifying Window Antenna Amplifier Module
    G04735875
