Retrofitting Linguatronic voice control system - AN82.70-P-0004PA

MODELS 203.2## 1# with CODE (852) Complete CTEL preinstallation on console for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (853) MB standard telephone for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (854) MB portable CTEL for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (855) TELE AID for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (359) TELE AID emergency call system for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (386) Preinstallation for telephone "Handy", UPCI system for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada for retrofitted telephone fixed installation or retrofitted portable CTEL

MODELS 203.2## 1# with CODE (388) Telephone "Handy", UPCI system for retrofitted telephone fixed installation or retrofitted portable CTEL

Shown on model 203.2 up to 23.4.04

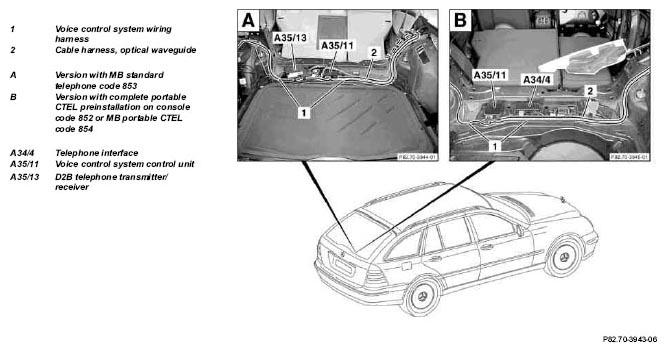

Fig 1: Identifying Linguatronic Voice Control System Components - Shown On Model 203.2 Up To 23.4.04

	Remove
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on fiber optic cable		AH82.70-P-0001-02A
1	Disconnect battery ground line
	Disconnect/connect battery's ground cable		AR54.10-P-0003P
2	Remove right front and right rear door sill moldings
3	Remove paneling from A-pillar in right passenger footwell
4	Open right wiring duct
5	Remove rear passenger compartment side trim panel	Right and left side
	Remove/install side paneling in rear		AR68.30-P-4780PA
6	Remove rear SAM control unit with fuse and relay module (N10/2)	Do not disconnect electrical connectors.
	Remove/install SAM control unit with fuse and relay box in rear		AR54.21-P-1259PS
7	Remove EIS control unit (N73)	Do not disconnect electrical connectors.
	Electronic ignition/starter switch (EZS) removal and installation		AR46.10-P-0810P
8.1	Remove TPM with variable speed limiter switch (S40/4)	Models fitted with cruise control code 440 Part discontinued.
	Remove/install cruise control switch	Up to 23.4.04 with cruise control code 440	AR54.25-P-2803P
	Remove/install cruise control switch	As of 24.4.04 with cruise control code 440	AR54.25-P-2803PQ
9	Remove combination switch (S4)
	Remove/install combination switch	Up to 23.4.04	AR54.25-P-2800P
	Remove/install combination switch	As of 24.4.04	AR54.25-P-2800PQ
10	Remove steering column switch module from jacket tube	Part discontinued.
	Install
11	Retrofit voice control system control unit (A35/11)	With complete portable CTEL preinstallation on console code 852 With MB portable CTEL code 854	AN82.70-P-0004-04PP
		With MB standard telephone code 853 With TELE AID code 855	AN82.70-P-0004-04P
		With TELE AID emergency call system code 359 With preinstallation for telephone "Handy", UPCI system code 386 With preinstallation for telephone "Handy", UPCI system, USA/Canada code 387 With telephone "Handy", UPCI system code 388	AN82.70-P-0004-04PPA
12	Retrofit Linguatronic fiber optic cable wiring harness (2)	With complete portable CTEL preinstallation on console code 852 With MB portable CTEL code 854	AN82.70-P-0002-01PPB
		With MB standard telephone code 853 With TELE AID code 855	AN82.70-P-0002-01PPC
		With sound system code 810 With CD changer code 819 With MB standard telephone code 853 With TELE AID code 855	AN82.70-P-0002-01PPA
		With sound system code 810 With CD changer code 819 With complete portable CTEL preinstallation on console code 852 With MB portable CTEL code 854	AN82.70-P-0002-01PPD
		with TELE AID emergency call system code 359 With preinstallation for telephone "Handy", UPCI system code 386 With preinstallation for telephone "Handy", UPCI system, USA/Canada code 387 With telephone "Handy", UPCI system code 388	AN82.70-P-0002-01PPF
13	Cover fiber optic cable
	Cover fiber optic cable		AR82.95-P-0005-01A
14	Retrofit Linguatronic voice control system wiring harness (1)		AN82.70-P-0004-01PA
15	Retrofit Linguatronic voice control system activation switch		AN82.70-P-0004-02P
16	Install combination switch (S4)
	Remove/install combination switch	up to 23.4.04	AR54.25-P-2800P
	Remove/install combination switch	as of 24.4.04	AR54.25-P-2800PQ
17	Install EIS [EZS] control unit (N73)
	Electronic ignition/starter switch (EZS) removal and installation		AR46.10-P-0810P
18	Install rear SAM control unit with fuse and relay module (N10/2)
	Remove/install SAM control unit with fuse and relay box in rear		AR54.21-P-1259PS
19	Install side paneling in rear passenger compartment	Right and left side
	Remove/install side paneling in rear		AR68.30-P-4780PA
20	Close right cable duct
21	Install paneling on A-pillar in right passenger footwell
22	Install right front and right rear door sill moldings
23	Connect ground cable to battery
	Disconnect/connect battery's ground cable		AR54.10-P-0003P
24	Read fault memory, erase if necessary	Stored faults which may be caused by removal, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
25	Perform nominal/actual configuration	STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
26	Perform function check	See Operator's Manual
