Retrofit radio - AZ82.60-P-0003P

MODEL 203.0 except CODE (753) MB radio Audio 30 RDS except CODE (756a) MB radio Audio 30 RDS with CD compartment

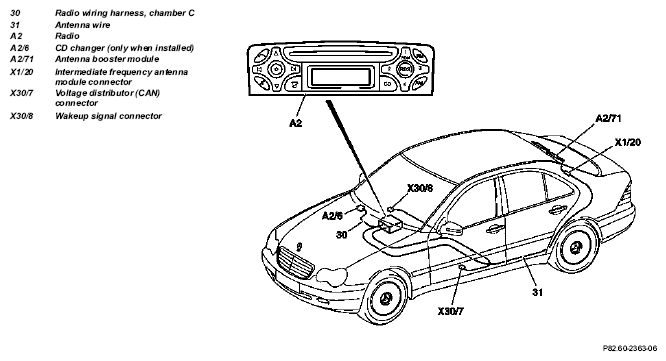

Fig 1: Identifying Radio, CD Changer, Antenna Booster Module And Wakeup Signal Connector
G04736289
REMOVING Remove
IMPORTANT Notes on radio installation Model 203.0. AH82.60-P-0001-03P
1 Connect quiescent current retention device   AR54.10-P-1030-07I
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1012-09A
DANGER Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
2 Disconnect ground cable at battery   AR54.10-P-0003P
NOTES Battery notes All types. AH54.10-P-0001-01A
3
REFER TO TESTING & REPAIR		 Remove radio
    Model 203
Code (750a) MB Audio 30 RDS radio, except Code (753) MB Audio 10 RDS radio, except Code (756a) MB Audio 10 RDS radio with CD tray.		 AR82.60-P-7502P
4 Remove right front floor covering
REFER TO TESTING & REPAIR     AR68.20-P-2070P
5 Remove left front floor covering
REFER TO TESTING & REPAIR     AR68.20-P-2050P
6 Open right wiring duct
7.1 Open left wiring duct IMPORTANT When installing antenna lead.
8.1 Remove side cushion on rear seat backrest IMPORTANT When installing antenna lead.
REFER TO TESTING & REPAIR     AR91.12-P-1710P
9 Remove paneling on left C-pillar and lay down to side IMPORTANT When installing antenna lead.
Do not remove seat belts from paneling.
REFER TO TESTING & REPAIR     AR68.30-P-4490P
10 Loosen headliner IMPORTANT The pre-embossed gluing point for the antenna module on the rear window should be accessible at the top.
REFER TO TESTING & REPAIR     AR68.30-P-4300P
INSTALLING Install
11.1 Install antenna amplifier module IMPORTANT Only required on radios with antenna diversity.
REFER TO TESTING & REPAIR     AR82.62-P-8300P
    IMPORTANT Treat gluing surface on roof with glass primer. *BR00.45-Z-1019-02A
    IMPORTANT Use activator. *BR00.45-Z-1023-04A
12 Retrofit radio wiring harness   AZ82.60-P-0003-01P
13 Fit remaining parts to vehicle 10 - 1
14.1 Enable radio code IMPORTANT See owner's manual (only if device code is being interrogated).
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1012-09A Quiescent current retention unit
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1019-02A Bonding agent Sika primer 206 G+P Sika Deutschland GmbH
Stuttgarter Strasse 139
72574 Bad Urach
Germany
Tel. +49 7125 940-761
Fax +49 7125 940-763
www.sika-industry.de
BR00.45-Z-1023-04A Activator A 005 989 58 71
PARTS ORDERING NOTES

Part no. Designation Quantity
Group 82 (see EPC) Antenna amplifier assembly for antenna diversity (if required) 1
Group 82 (see EPC) Antenna lead for antenna diversity (if required) 1
Group 82 (see EPC) Audio 10 CD radio as required
Design Group 82 (see EPC) Audio 10 CC radio as required
Design Group 82 (see EPC) Radio wiring harness (chamber C) 1
Group 68 (see EPC) Stowage shell (for installation without DIN installation frames) 1
