Remove/install front floor covering (right) - AR68.20-P-2070P

MODEL 203, 209

Shown in model 203.0

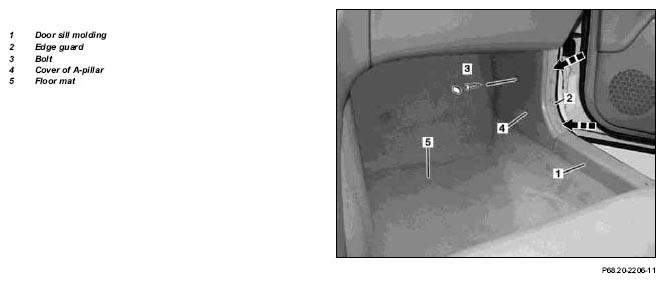

Fig 1: Identifying Front Floor Covering Remove/Install Components (Right)

	Remove/Install
1	Move right front seat toward rear
2	Unclip door sill molding (1), remove
3	Remove edge guard (2) in area of A-pillar cover (4)
4	Unclip cap from A-pillar cover (4)
5	Unscrew bolt (3)
6	Unclip cap from A-pillar cover (4), remove
7	Lift floor covering (5) at rear, remove	Installation:  Insert floor covering in area of center console.
8	Install in the reverse order
