Retrofitting radio wiring harness - AZ82.60-P-0003-01P

Prepare radio wiring harness chamber C (30) and antenna lead (31) as shown in figure.
Connection schematic for radio

Fig 1: Connection Schematic Diagram For Radio Wiring Harness (1 Of 2)
Route wiring harness (30 and 31) along present leads in vehicle as shown in figure.
Connection schematic for radio

Fig 2: Connection Schematic Diagram For Radio Wiring Harness (2 Of 2)
Route wiring harness tie-out (30) and antenna lead (31) to radio (A2) and connect.

Fig 3: Identifying Wiring Harness Tie-Out, Antenna Lead And Radio

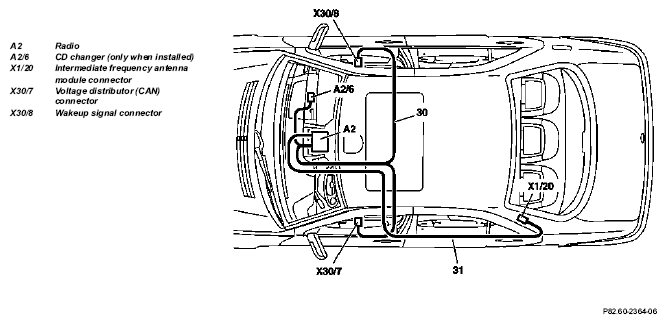

Route wiring harness (30) and antenna lead (31) in wiring duct in front of driver and passenger seat as shown in figure.

Fig 4: Identifying Radio, CD Changer, Voltage Distributor Connector And Wakeup Signal Connector
Route blue/black (bl/sw) leads for wiring harness (30) to wakeup signal connector (X30/8) on right A-pillar and insert into chambers 1 and 2 for black connector.
If a black connector with blue/black (bl/sw) leads is not present connect connector already present at the wiring harness (30) to the connector strip as wakeup signal plug connector (X30/8).

Fig 5: Identifying Wakeup Signal Connector
Route tie-out to CAN voltage distributor connector (X30/7) into area of left A-pillar and connect to next free plug location on distributor.

Fig 6: Identifying CAN Voltage Distributor Connector

Only on vehicles to be equipped with CD player with changer in glove compartment.

Route tie-out for wiring harness (30) to CD player with changer (A2/6) into glove compartment through passage.
On vehicles without CD player with changer (A2/6) tie back this tie-out just behind the radio.

Fig 7: Identifying CD Player With Changer Wiring Harness Tie-Out Routing
Route antenna lead (31) in left wiring duct to intermediate frequency antenna module connector (X1/20) to left C-pillar and connect.

Fig 8: Identifying Antenna Lead And Intermediate Frequency Antenna Module Connector
