Remove/install radio - AR82.60-P-7502P

MODEL 203 with CODE (750) MB Audio 30 RDS radio

MODEL 203 with CODE (753) MB Audio 10 RDS radio

MODEL 203 with CODE (756) MB Audio 10 radio/CD with traffic news decoder/RDS

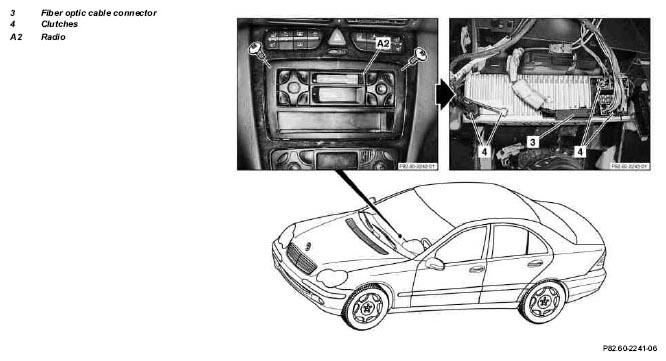

Fig 1: Identifying Radio Remove/Install Components - Model 203 With Codes (750), (753) And (756)

	Remove/install
1	Transfer basic data from radio (A2) to STAR DIAGNOSIS	When replacing the radio (A2). Installation:  transfer temporarily stored basic data to the new radio (A2).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove cover on center console		AR68.20-P-2350P
3	Unscrew bolts
4	Pull out the radio (A2)
5	Disconnect fiber optic cable connector (3)	Do not kink or stretch fiber optic cable D2B, as this could result in malfunctions. Install caps on fiber optic cable connector and equipment connector. See: ↓
		Cover fiber optic cable	AR82.95-P-0005-01A
	Notes on fiber optic cable		AH82.70-P-0001-02A
6	Disconnect connectors (4)
7	Install in the reverse order
