Check and adjust camber and caster at front axle - AR40.20-P-0322GH

MODEL 163

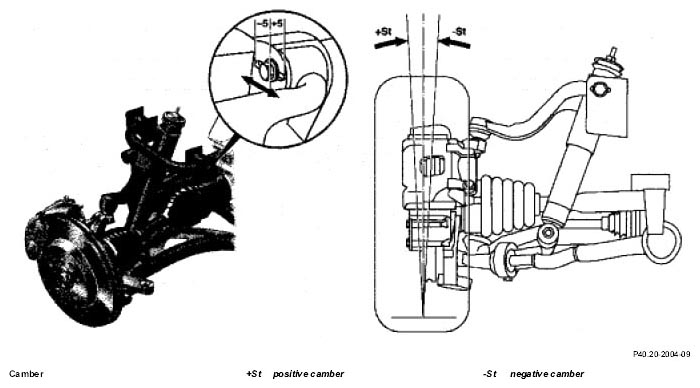

Fig 1: Adjusting Camber At Front Axle

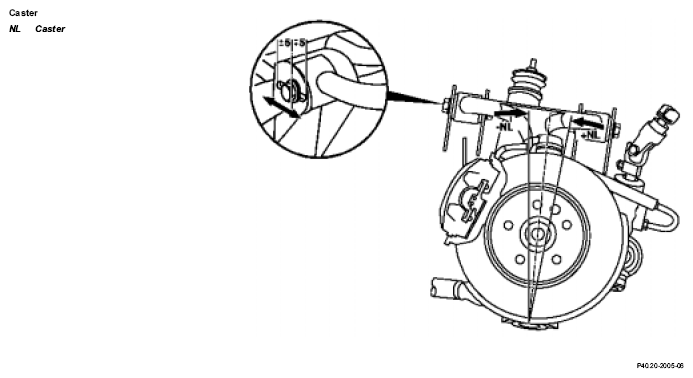

Fig 2: Adjusting Caster At Front Axle

Modification notes

10.9.03

Reference to adjusting toe-in at the front and rear axle replaced by reference to chassis alignment

Stage 7

	Check
1	Observe general information on chassis alignment		AR40.20-P-0201A
2	Check vehicle level at front and rear axle with electronic inclinometer and adjust if necessary		AR40.20-P-0301GH
3	Check camber and assign tabular value		AR40.20-P-0322-02GH
		Camber at vehicle level	*BE40.20-P-1001-13D
		Camber at vehicle level	*BE40.20-P-1002-13D
		Note maximum permissible difference in front-axle camber between the right and left-hand sides of the vehicle	*BE40.20-P-1003-13D
4	Check caster and assign tabular value	Measurement with wheels turned 20°.	AR40.20-P-0322-03GH
	Adjust
5	Adjusting camber and caster	The front axle camber is corrected at the rear bolted connection of the upper transverse control arm on the vehicle frame. The front axle caster is adjusted at the front bolted connection of the upper transverse control arm on the vehicle frame.	AR40.20-P-0322-06GH
			*BA33.20-P-1006-01D
6	Re-check vehicle level at front axle after adjusting the camber and caster	The vehicle level must match the dimension established during the initial measurement.	AR40.20-P-0301GH
7	Check toe-in at front and rear axle and adjust if necessary.	See ↓ Perform chassis alignment check	AR40.20-P-0200A

Inspection data of front wheel camber

Number	Designation			Models 163.113/128/ 136/154/157/ 172/175	Type 163.174
BE40.20-P-1001-13D	Camber at vehicle level	3,0 °	∠ °	-	-0° 24'(±20')
		3,2°	∠ °	-	-0° 24'(±20')
		3,4°	∠ °	-	-0° 25'(±20')
		3,6°	∠ °	-	-0° 26'(±20')
		3,8°	∠ °	-	-0° 26'(±20')
		4,0°	∠ °	-	-0° 27'(±20')
		4,2°	∠ °	-	-0° 28'(±20')
		4,4°	∠ °	-	-0° 29'(±20')
		4,6°	∠ °	-	-0° 29'(±20')
		4,8°	∠ °	-	-0° 30'(±20')
		5,0°	∠ °	-	-0° 31'(±20')
BE40.20-P-1002-13D	Camber at vehicle level	5,4°	∠ °	- 0° 33' (±20')	-
		5.6°	∠ °	- 0° 34'(±20')	-
		5.8°	∠ °	- 0° 35'(±20')	-
		6,0°	∠ °	- 0° 36'(±20')	-
		6,2°	∠ °	- 0° 37'(±20')	-
		6,4°	∠ °	- 0° 38'(±20')	-
		6,6°	∠ °	- 0° 39'(±20')	-
		6,8°	∠ °	- 0° 40'(±20')	-
		7,0°	∠ °	- 0° 41'(±20')	-
		7,2°	∠ °	- 0° 42'(±20')	-
BE40.20-P-1003-13D	Note maximum permissible difference in front-axle camber between the right and left-hand sides of the vehicle		∠ °	20'	20'

Wheel location, hub

Number	Designation		Model 163
BA33.20-P-1006-01D	Bolt, upper wishbone to frame	Nm	120
