Check caster and assign to tabular value - AR40.20-P-0322-03GH

Measure ride heights of front and rear axles and consult chart for front caster angle (with wheels at 20° angle), tolerance ± 30', max. difference left to right 30'.

The level values are displayed by the electronic inclinometer in decimal degrees °.

The specifications in mm serve merely as an aid to understanding, they are not displayed by the electronic measuring system.

Model 163.113/128/136/154/172

VA = for front axle level

HA = for rear axle level

Example:

Front axle level (6.4°/12.1 mm) + rear axle level (4.7°/25.0 mm) = Caster angle (6° 48'±30')

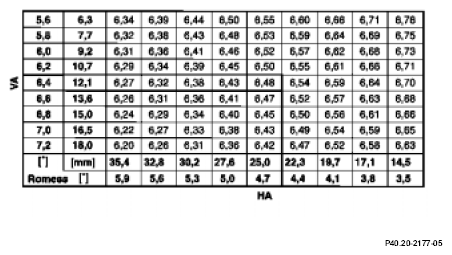

Fig 1: Tabular Value Table - Model 163.113/128/136/154/172

Model 163.174

VA = for front axle level

HA = for rear axle level

Example:

Front axle level (4.0°/-5.4 mm) + rear axle level (3.0°/10.2 mm) = Caster angle (6° 99'±30')

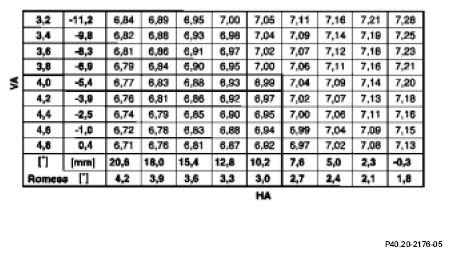

Fig 2: Tabular Value Table - Model 163.174
