Check vehicle level at front and rear axle with electronic inclination meter and adjust, if necessary - AR40.20-P-0301GH

MODEL 163

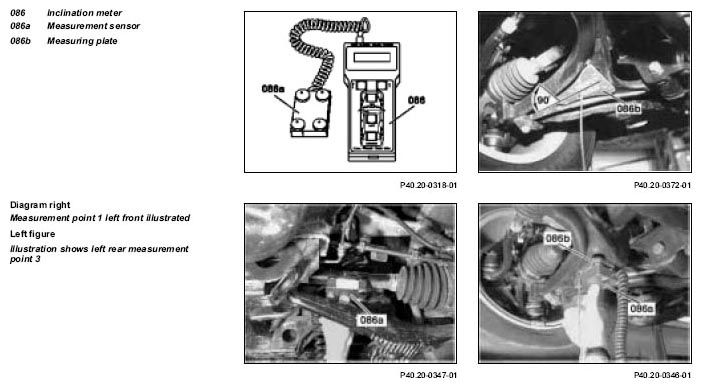

Fig 1: Identifying Inclination Meter, Measurement Sensor And Measuring Plate

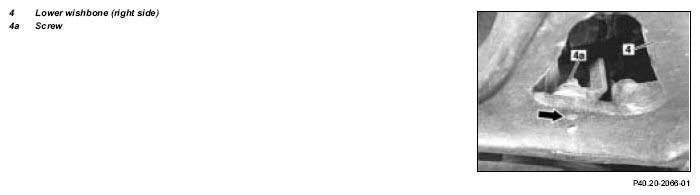

Fig 2: Identifying Lower Wishbone (Right Side) And Screw

Modification notes

21.2.01	Test values changed for vehicle level at front axle		*BE40.20-P-1001-02G
21.2.01	Test values changed for vehicle level at rear axle		*BE40.20-P-1001-03G

1	Observe general information on chassis alignment check.	After repair work, rock the vehicle vigorously several times to settle the suspension prior to measurement. With Code 612 xenon headlamp, alter centering disk of measuring plate for electronic inclination meter.	AR40.20-P-0201A
	Alter centering disk of measuring plate for electronic inclination meter.	Model Series 163	WF58.50-P-0021-01GH
2	Install measuring plate (086b) in the recess in the lower wishbone.	With Code 612 xenon headlamp, unscrew bolt (4a) until it no longer protrudes (arrow) at the lower wishbone (4). The groove in the measuring plate (086b) should be at an angle of 90° to the direction of travel. Clean measurement point at lower wishbone. Remove metal shavings on the measuring plate. The measuring plate is magnetic. Information on data media, e.g. floppy disks, credit cards etc., could be rendered unusable.	*WE58.40-Z-1002-15A
3	Check vehicle level at front axle via the wishbone inclination.	Install measuring sensor (086a) (connection cable points to center of vehicle) and store measured value. Measurement point 1 left front. Right front measurement point 2	*WE58.40-Z-1002-15A
3			*BE40.20-P-1001-02G
4	Check vehicle level on rear axle via rear axle shaft inclination.	Position measuring sensor (086a) on left and right rear axle shaft (connection cable points to center of vehicle) and store measured value in each case. Clean measurement points on rear axle shaft. Left rear measurement point 3 Measurement point 4 right rear.	*WE58.40-Z-1002-15A
4			*BE40.20-P-1001-03G
5.1	Vehicle level outside tolerance at front axle	Adjust vehicle level via rear torsion bar spring mount.	AR40.20-P-0301-01GH
6.1	Vehicle level outside tolerance at rear axle	Adjust vehicle level by changing the springs.

Test values for vehicle level at front axle

Number	Designation		Model 163.113/128/136/ 154/157/172/175	Model 163.174
BE40.20-P-1001-02G	Vehicle level - front axle	°	6.4 (0.7)4.0(0.7)	4.0 (±0.7)

Test values for vehicle level at rear axle

Number	Designation		models 163.113/128/136 /154/157/172/175	models 163.174
BE40.20-P-1001-03G	Vehicle level - rear axle	°	4.7 (1.2)2.9(1.2)	2.9 (±1.2)

Workshop equipment

WE58.40-Z-1002-15A

Electronic clinometer
