Remove/install rear side window - AR67.30-P-4000K

MODEL 208.3

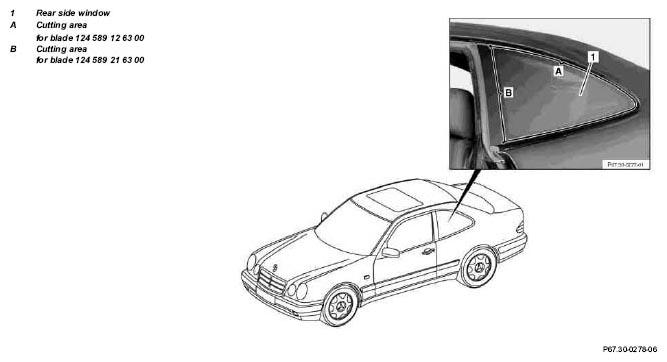

Fig 1: Identifying Rear Side Window And Cutting Area For Blade

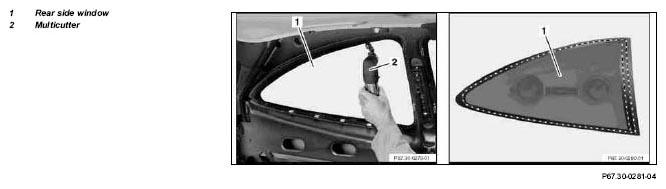

Fig 2: Identifying Rear Side Window And Multicutter

	Remove
1	Prepare glue cartridge		AR67.10-P-1000-07K
		Repair kit	*BR00.45-Z-1015-02A
2	Remove molding from rear side window		AR67.30-P-4010K
3	Remove paneling on B-pillar		AR68.30-P-4700K
4	Remove paneling on C-pillar		AR68.30-P-4490K
5	Remove right side trim panel in rear		AR68.30-P-4780K
	Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A
6	Cut out side window (1) with cutting blade		AR67.30-P-4050-01K
			Figure
			Figure
			*WH58.30-Z-1003-20A
7	Remove rear side window (1) from body with suction cups		*WE58.40-Z-1029-11A
	Install
8	Replace rubber and other spacers	Do not remove protective foil	AR67.30-P-4050-02K
9	Prepare window for installation		AR67.10-P-1000-03P
10	Prepare body flange for installation of window		AR67.10-P-1501-01P
11	Align side window in body opening		AR67.30-P-4050-04K
12	Remove protective foil from rubber spacers
13	Apply glue		AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
		Height of glue bead approx. 13 mm Install window within 10 minutes before adhesive force of glue starts to decrease
14	Insert side window		AR67.30-P-2305-03K
		Curing time is approx. 1 hour, calculated from the time the rear side window is installed.	*WE58.40-Z-1029-11A
15	Install molding on rear side window		AR67.30-P-4010K
16	Install side paneling in rear		AR68.30-P-4780K
17	Install paneling on C-pillar		AR68.30-P-4490K
18	Install paneling at B-pillar		AR68.30-P-4700K
19	Clean rear side window
