Replacing rubber and other spacers - AR67.30-P-4050-02K

  1. Glue rubber spacers (3, 2 each) to outside of body flange at bottom (see figure for location).

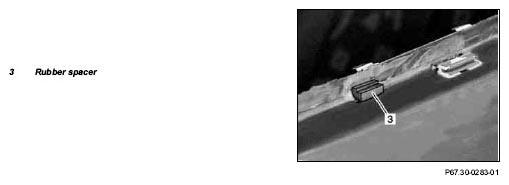

    Fig 1: Identifying Rubber Spacer
    G04729427
  2. Glue other spacers (4 and 5, 2 each) onto outside of body flange (see figure for location).

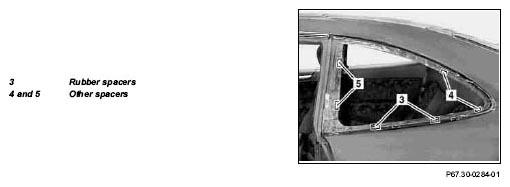

    Fig 2: Identifying Rubber Spacers
    G04729428
