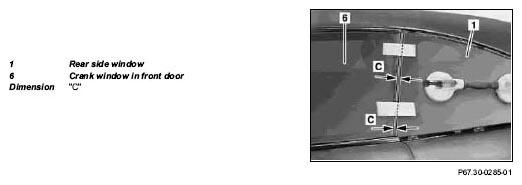

Aligning side window in body opening - AR67.30-P-4050-04K
TEST AND ADJUSTMENT VALUES FOR REAR SIDE WINDOW
| Number | Designation | Model 208.3 | ||
|---|---|---|---|---|
| BE67.30-P-1001-01B | Gap between vertical edge of glass on crank window and rear side window | Dimension "C" | mm | 7 |
| See figure | AR67.30-P-4050-04K | |||
- Close front door and crank window (6).
- Position rear side window (1) on rubber spacers.
- Press rear side window (1) down against other spacers and align.
- Adjust dimension "C" and fasten with strips of adhesive tape, then cut through strips of adhesive tape at front edge of rear side window (1) with knife.
- Remove rear side window (1)
