Removing and installing release lever for rear backrest - AR91.12-P-1732A

MODEL 202.07/08/18, 210.2

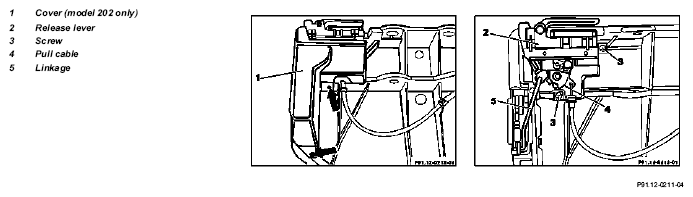

Fig 1: Identifying Release Lever For Rear Backrest Remove/Install Components - Model 202.07/08/18, 210.2

	Removal, installation
1	Remove rear seat and rear backrest	Model 202	AR91.12-P-1700EA
		Model 210	AR91.12-P-1700FA
2	Remove inner backrest fitting	Model 202	AR91.12-P-1733A
		Model 210	AR91.12-P-1733B
3	Remove head restraint guides		AR91.16-P-1775A
4	Remove cover on left rear backrest	Model 202	AR91.18-P-1874A
		Model 210	AR91.18-P-1874B
	Remove cover on right rear backrest	Model 202	AR91.18-P-1878A
		Model 210 Disassemble rear backrest only to the point "Remove foam rubber pad from backrest frame"	AR91.18-P-1878B
5	Unscrew screws (arrows)	Only on model 202
6	Remove cover (1)	Only on model 202
7	Unscrew screws (3)
8	Unhook pull cable (4) and linkage (5)
9	Remove release lever (2)
10	Reinstall in opposite order
