Removing and installing cover on right rear backrest - AR91.18-P-1878A
MODEL 202.07/08/18

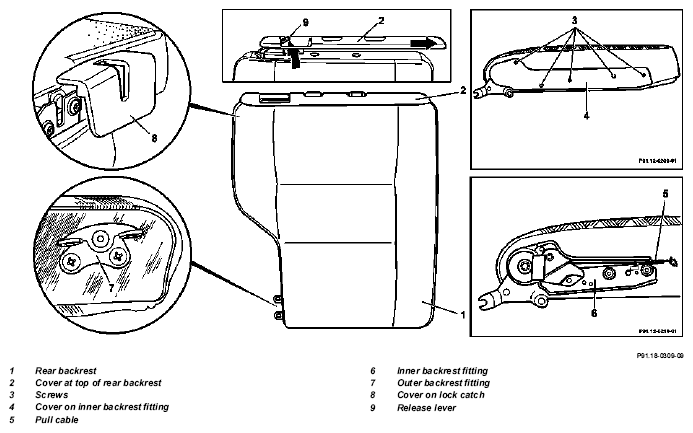

Fig 1: Identifying Right Rear Backrest Cover Remove/Install Components - Model 202.07/08/18 (1 Of 2)

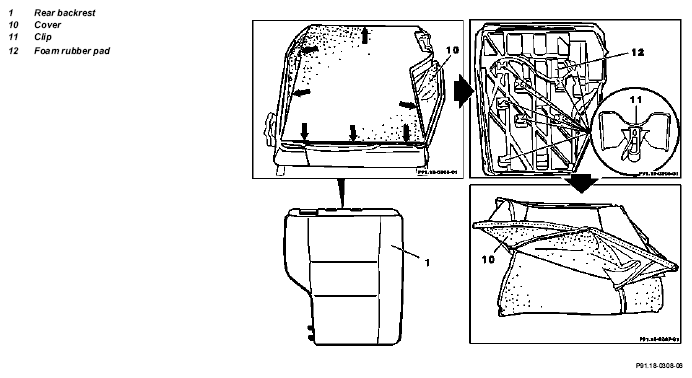

Fig 2: Identifying Right Rear Backrest Cover Remove/Install Components - Model 202.07/08/18 (2 Of 2)
| Removal, installation | |||
| 1 | Remove rear seat and right rear backrest | AR91.12-P-1700EA | |
| 2 | Remove head restraint guides | AR91.16-P-1775A | |
| 3 | Remove cover at top of rear backrest (2) | ||
| 4 | Unclip cover for lock catch (8) | ||
| 5 | Unscrew outer backrest fitting (7) | ||
| 6 | Remove inner backrest fitting (6) | AR91.12-P-1733A | |
| 7 | Unhook cover (13) all around clip groove (arrows) | ||
| 8 | Remove cover (13) and foam rubber pad (12) from backrest frame | ||
| 9 | Unhook clips (11) for holding cover on rear of foam rubber pad (12) in lateral and longitudinal directions Mounting hook for upholstery clips |
WF58.50-P-9118-01A | |
| 10 | Remove cover (13) from foam rubber pad (12) | ||
| 11 | Pull upholstery wires (2 longitudinal, 2 lateral wires) out of textile tubes in cover (13) | ||
| 12 | Reinstall in opposite order |
