Removal, installation |
|
|
| 1 |
Remove rear seat |
|
AR91.12-P-1700E |
| 2 |
Remove side cushion on rear backrest |
|
AR91.12-P-1710A |
| 3 |
Unlock rear backrest and tip forward |
|
|
| 4 |
Remove front cover for floor covering in rear |
|
AR68.20-P-4800A |
| 5 |

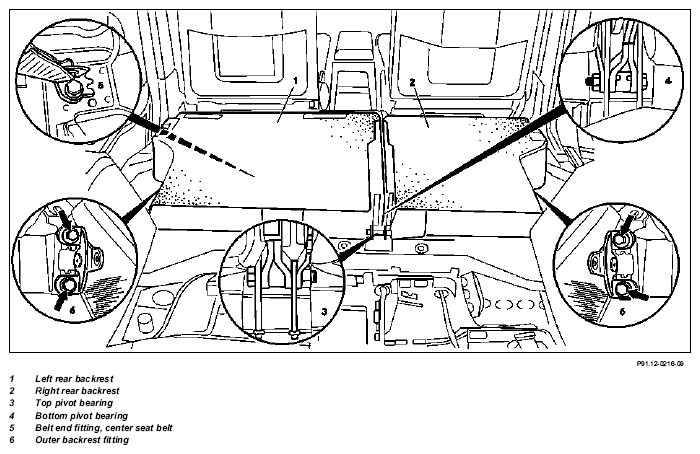

Unscrew outer backrest fittings (6) |
|
|
| 6 |
Unscrew bolt for top pivot bearing (3) |
|
|
| 7 |
Fold backrest back |
|
|
| 8 |
Unscrew belt end fitting for center seat belt |
 Installation:
Ensure that belt end fitting is properly positioned |
|
| |
|
 |
*BA91.40-P-1001-01A |
| |
|
 |
Fig 2 |
| 9 |
Loosen bolt for bottom pivot bearing (4) |
Do not completely unscrew bolt |
|
| 10 |
Remove rear backrest on left (1) and right (2) upward |
|
|
| 11 |
Reinstall in opposite order |
|
|
| 12 |
Adjust rear backrest |
|
AR91.12-P-1725A |
