Removing and installing cover on left rear backrest - AR91.18-P-1874A

MODEL 202.07/08/18

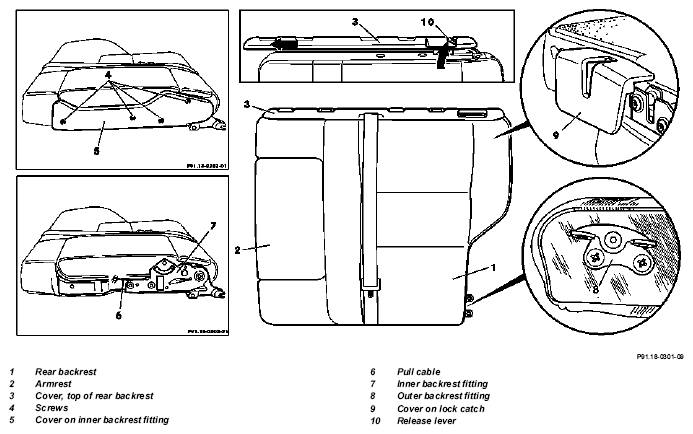

Fig 1: Identifying Left Rear Backrest Cover Remove/Install Components - Model 202.07/08/18 (1 Of 2)

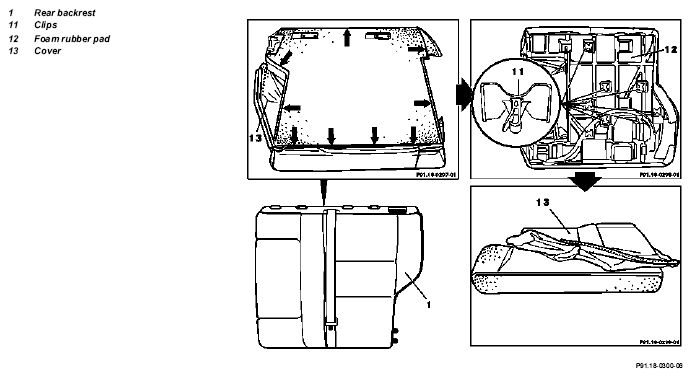

Fig 2: Identifying Left Rear Backrest Cover Remove/Install Components - Model 202.07/08/18 (2 Of 2)

	Removal, installation
1	Remove rear seat and left rear backrest		AR91.12-P-1700EA
2	Remove inner backrest fitting (7)		AR91.12-P-1733A
3	Remove armrest (2)		AR91.12-P-1745E
4	Unscrew outer backrest fitting (8)
5	Unclip cover on lock catch (9)
6	Remove head restraint guides		AR91.16-P-1775A
7	Remove cover at top of rear backrest (3)	Lift release lever slightly
8	Unhook cover (13) all around clip groove (arrows)
9	Remove cover (13) and foam rubber pad (12) from backrest frame
10	Unhook clips (11) for holding cover on rear of foam rubber pad (12) in lateral and longitudinal directions
	Mounting hook for upholstery clips		WF58.50-P-9118-01A
11	Remove cover (13) from foam rubber pad (12)
12	Pull upholstery wires out of textile tubes in cover (13)	Installation:  Slide upholstery wires into textile tubes and align
13	Reinstall in opposite order
