Removing and installing head restraint guides in rear backrest - AR91.16-P-1775A
MODEL 202.07/08/18, 210.2

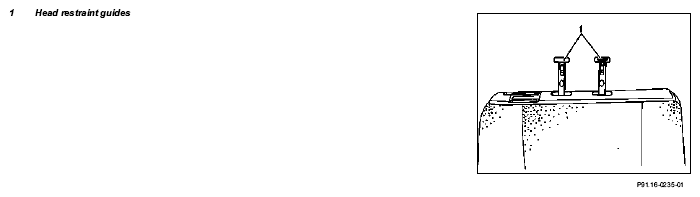

Fig 1: Identifying Head Restraint Guides In Rear Backrest Remove/Install Components - Model 202.07/08/18, 210.2
| Removal, installation | |||
| 1 | Press release button for head restraints and pull head restraint up and out | ||
| 2 | Release head restraint guide (1) with long wedge and pull out of rear backrest |
NOTE:
Install head restraint guides with release button pointing to left side of vehicle
|
Figure |
| 3 | Reinstall in opposite order |
