Removing and installing rear center seat belt - AR91.40-P-0683B

MODEL 202.07/08/18, 210.2

Model 202

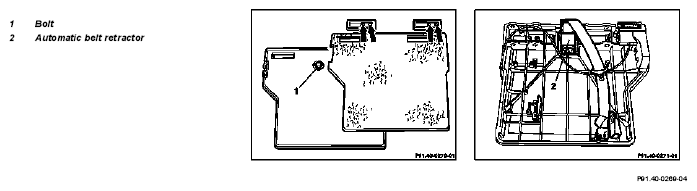

Fig 1: Identifying Rear Center Seat Belts Remove/Install Components (Model 202)

Model 210

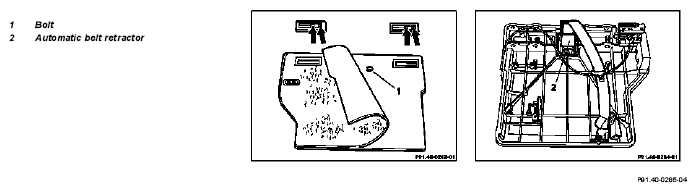

Fig 2: Identifying Rear Center Seat Belts Remove/Install Components (Model 210)

	Removal, installation
1	Remove rear seat and left rear backrest	Model 202	AR91.12-P-1700EA
		Model 210	AR91.12-P-1700FA
2	Remove inner backrest fitting	Model 202	AR91.12-P-1733A
		Model 210	AR91.12-P-1733B
3	Remove head restraint guides		AR91.16-P-1775A
4	Remove cover on left backrest	Disassemble rear backrest only up to point of "Removing foam rubber pad from backrest frame"
		Model 202	AR91.18-P-1874A
		Model 210	AR91.18-P-1874B
5	Unscrew bolts (arrows)
6	Remove double sun shade guide
7	Remove shaped carpeting from backrest frame	On model 202 only
	Pull carpeting off of backrest frame	On model 210 only
		Installation:  On model 210 it is generally necessary to use a new carpet
8	Unscrew bolt (1)		*BA91.40-P-1006-01A
			Figure
9	Remove automatic belt retractor (2)
10	Reinstall in opposite order

Seat belts/emergency tensioning retractors

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1006-01A	Bolt in rear automatic belt retractor	Nm	30	30	30

Fig 3: Identifying Torque Wrench (001 589 66 21 00)
