Removing and installing rear seat belts - AR91.40-P-0681EA

MODEL 202.07/08/18

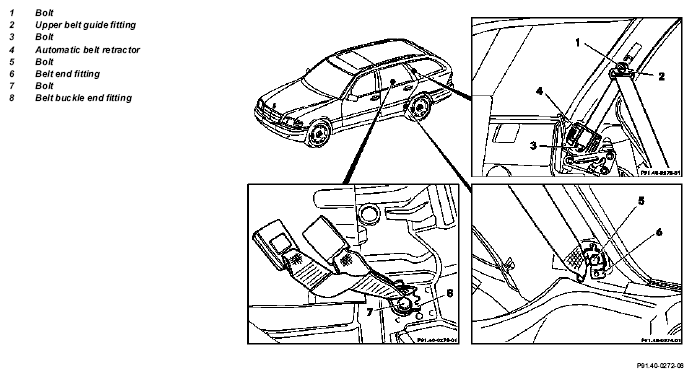

Fig 1: Identifying Rear Seat Belts Remove/Install Components - Model 202.07/08/18

	Removal, installation
1	Remove rear seat		AR91.12-P-1700E
2	Remove side cushion on rear backrest		AR91.12-P-1710A
3	Remove side paneling in rear		AR68.30-P-4780A
4	Unscrew bolt (1) in upper belt guide fitting (2)		*BA91.40-P-1005-01A
			Figure
5	Unscrew bolt (3) in automatic belt retractor (4)		*BA91.40-P-1006-01A
		Installation:  Ensure that belt retractor arrests
			Figure
6	Unscrew bolt (5) in belt end fitting (6)		*BA91.40-P-1007-01A
		Installation:  Ensure that belt fitting is arrested
			Figure
7	Remove insulating mat below rear seat
8	Unscrew bolt (7) in belt buckle end fitting (8)		*BA91.40-P-1007-01A
		Installation:  Ensure that belt buckle end fitting is arrested
			Figure
9	Reinstall in opposite order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1001-01A	Bolt in belt end fitting	Nm	35	35	35
BA91.40-P-1005-01A	Bolt in rear upper belt guide fitting	Nm	30	30	30
BA91.40-P-1006-01A	Bolt in rear automatic belt retractor	Nm	30	30	30
BA91.40-P-1007-01A	Bolt in rear belt buckle	Nm	30	30	30

Fig 2: Identifying Torque Wrench (001 589 66 21 00)
