Remove/install crankshaft - AR03.20-P-4351BV

ENGINE 113 (except 113.995) in MODEL 129, 163, 202, 208, 209, 210, 211, 215, 220, 230

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODEL 463.243/246

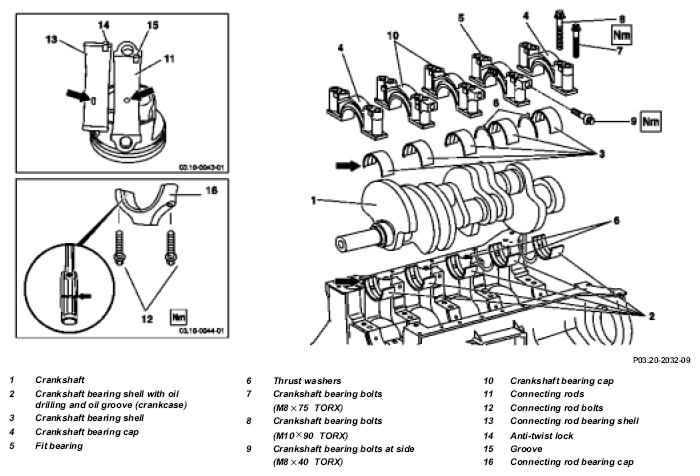

Fig 1: Identifying Crankshaft, Crankshaft Bearing Cap, Thrust Washer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Remove engine	Model 463.206/ 209/ 232/ 233/ 240/ 241	AR01.10-P-2400CC
		Model 463.244/ 245/ 247/ 248/ 249/ 250/ 254	AR01.10-P-2401GT
		Model 463.243/ 246	AR01.10-P-2401MG
		Model 230.475	AR01.10-P-2400R
		Model 230.474	AR01.10-P-2400RVK
		Model 220	AR01.10-P-2400AB
		Model 209	AR01.10-P-2400Q
		Model 210 without 4-MATIC, 208, 202, 129	AR01.10-P-2400CB
		Model 211.070	AR01.10-P-2400TC
		Model 163	AR01.10-P-2400CA
2	Remove automatic transmission from engine	Model 463.206/ 209/ 232/ 233/ 240/ 241	AR27.10-P-0500BD
		Model 463.243/ 244/ 245/ 246/ 247/ 248/ 249/ 250/ 254	AR27.10-P-0500GA
		Model 230.475	AR27.10-P-0500R
		Model 230.474
		Model 220	AR27.10-P-0500I
		Model 209	AR27.10-P-0500P
		Models 210, 208, 202, 129	AR27.10-P-0500B
		Model 211.070	AR27.10-P-0500T
		Model 163	AR27.10-P-0500GH
3	Remove oil pan top section	Models 463.209 /232 /233 /244 /245 /250 with Engine 112.945.	AR01.45-P-7500FG
		Models 463.206 /240 /241 /247 /248 /249 /254 with Engine 113.962.
		MODELS 463.243 /246 with ENGINE 113.982
		Model 230.	AR01.45-P-7500R
		Model 220	AR01.45-P-7500I
		Model 210 without 4-MATIC	AR01.45-P-7500F
		Model 211.070	AR01.45-P-7500TV
		Models 208, 202	AR01.45-P-7500FC
		Model 209	AR01.45-P-7500PV
		Model 163	AR01.45-P-7500FB
		Model 129	AR01.45-P-7500FD
4	Remove oil pump	For this step, push back chain tensioner and take off chain.	AR18.10-P-6020B
		Model 230.	AR18.10-P-6020R
		Models 209, 211.070	AR18.10-P-6020PV
5	Detach belt pulley/vibration damper	Models 129, 208, 210, 463, 163 except 163.174	AR03.30-P-1600C
		Models 163.174, 209.375	AR03.30-P-1600CA
		Model 211 except 211.076 /176
		Model 215 except 215.374
		Model 220 except 220.074 /174
		Model 230 except 230.474
		Models 211.076/176	AR03.30-P-1600RVK
		Model 215.374
		Models 220.074/174
		Model 230.474
6	Detach flywheel/driven plate		AR03.30-P-8001C
7	Take off end cover		AR01.40-P-8913B
8	Take off timing case cover	Model 463.209 /232 /233 /244 /245 /250 with Engine 112.945.	AR01.40-P-8000GV
		Model 463.206 /240 /241 /247 /248 /249 /254 with Engine 113.962.
		MODELS 463.243 /246 with ENGINE 113.982
		Models 230.474 /475, 220, 210 without 4-MATIC, 208, 202, 163, 129	AR01.40-P-8000B
		Models 209, 211.070	AR01.40-P-8000PV
9	Remove connecting rod bearing cap (16)	While turning the crankshaft ensure that the connecting rods (11) do not get jammed. To do this, mark connecting rod (11) and connecting rod bearing cap (16) on one side relative to each other.
10	Unscrew the crankshaft bearing cap bolts	Pay attention to the bolt release pattern: ↓ Tightening diagram of crankshaft bearing caps	AR03.20-P-4351-02BV
11	Remove the crankshaft bearing caps (4, 10) and fitted bearing (5)	Before removing, mark the crankshaft bearing caps (4, 10) and fitted bearing (5). Carefully lever out crankshaft bearing caps (10) and (5).
12	Take crankshaft (1) out of the crankcase
13	Take crankshaft bearing shells with oil hole and oil groove (crankcase) (2) and thrust washers (6) out of the crankcase
	Installing
14	Insert crankshaft (1)	Oil the crankshaft journals and crankshaft bearing shells.
		If a new crankshaft is being installed	AR03.20-P-4341-01CV
		If crankshaft is being repaired	AR03.20-P-4341-01CVA
15	Tighten the crankshaft bearing caps	The crankshaft bearing cap bolts M8x75 and M10x90 must always be replaced otherwise there is a risk of cranks and fracture.	AR03.20-P-4351-02BV
		Tighten all bolts at the same time as specified in the tightening diagram.
		Crankshaft bearing cap bolt	*BA03.20-P-1001-01D
		Side crankshaft bearing cap bolt	*BA03.20-P-1002-01D
		Crankshaft bearing cap bolt	*BA03.20-P-1003-01D
16	Check axial play of crankshaft	If a new crankshaft is being installed	AR03.20-P-4291-03AV
17	Inspect connecting rod bolts (12)	Test data: ↓ Thread and shank length	AR03.10-P-6111-01BV  *BE03.10-P-1001-03A
18	Install connecting rod bearings and fit connecting rod bearing cap (16)	The connecting rod bearing shell (13) with the drilling (arrowed) must be installed in the connecting rod (11), otherwise the connecting rod bearings will not be lubricated. The anti-twist lock (14) on the connecting rod bearing shell (13) must be located in the grooves (15) of the connecting rods(11)and of the connecting rod bearing cap (16). connecting rod (11) and connecting rod bearing cap (16) are cracked They must not be installed on the wrong side, as dimensional accuracy would be lost.	AR03.10-P-6111-06AV
19	Tighten connecting rod bolts (12)	Connecting rod bolt	AR03.10-P-6111-02BV  *BA03.10-P-1001-01E
20	Rotate crankshaft	To check that it turns freely.
21	Fit on end cover	Fit new radial sealing ring. The sealing lip of the radial sealing ring and its mating surface must not be oiled or greased. Pay attention to the fitted sleeves when pressing on the end cover.	AR01.40-P-8913B
22	Mount the flywheel/drive plate		AR03.30-P-8001C
23	Mount the timing case cover	Replace O-rings and radial seal. The sealing lip of the radial sealing ring and its mating surface must not be oiled or greased. Pay attention to the fitted sleeves when pressing on the end cover.
		Models 463.209 /232 /233 /244 /245 /250 with Engine 112.945.	AR01.40-P-8000GV
		Models 463.206 /240 /241 /247 /248 /249 /254 with Engine 113.962.
		MODELS 463.243 /246 with ENGINE 113.982
		Models 220, 210 without 4-MATIC, 208, 202, 163, 129,230.474/475	AR01.40-P-8000B
		Models 209, 211.070	AR01.40-P-8000PV
24	Mount belt pulley/vibration damper	All except model 163.174, 208, 209.375, 220.	AR03.30-P-1600C
		Models 163.174, 209.375	AR03.30-P-1600CA
		Model 211 except 211.076 /176
		Model 215 except 215.374
		Model 220 except 220.074 /174
		Model 230 except 230.474
		Models 211.076/176	AR03.30-P-1600RVK
		Model 215.374
		Models 220.074/174
		Model 230.474
25	Mount the oil pump	Ensure oil return flow check valve is correctly located. Clean the oil pump strainer. Fill oil pump with engine oil before installing, so that oil is delivered at the initial startup.
		Models 129, 163, 202, 208, 210, 220, 463	AR18.10-P-6020B
		Models 230.	AR18.10-P-6020R
		Models 209, 211.070	AR18.10-P-6020PV
26	Fit the oil pan top section	Models 463.209 /232 /233 /244 /245 /250 with Engine 112.945.	AR01.45-P-7500FG
		Models 463.206 /240 /241 /247 /248 /249 /254 with Engine 113.962.
		MODELS 463.243 /246 with ENGINE 113.982
		Model 230.	AR01.45-P-7500R
		Model 220	AR01.45-P-7500I
		Model 210 without 4-MATIC	AR01.45-P-7500F
		Model 211.070	AR01.45-P-7500TV
		Model 209	AR01.45-P-7500PV
		Models 208, 202	AR01.45-P-7500FC
		Model 163	AR01.45-P-7500FB
		Model 129	AR01.45-P-7500FD
27	Check engine valve timing		AR05.10-P-6858V
28	Fit automatic transmission	Model 463.206/ 209/ 232/ 233/ 240/ 241	AR27.10-P-0500BD
		Model 463.243/ 244/ 245/ 246/ 247/ 248/ 249/ 250/ 254 Type 230.475	AR27.10-P-0500GA
		Model 230.474	AR27.10-P-0500R
		Model 220	AR27.10-P-0500I
		Models 210, 208, 202, 129	AR27.10-P-0500B
		Model 211.070	AR27.10-P-0500T
		Model 209	AR27.10-P-0500P
		Model 163	AR27.10-P-0500GH
29	Install engine	Models 463.206/ 209/ 232/ 233/ 240/ 241	AR01.10-P-2400CC
		Models 463.243/ 244/ 245/ 246/ 247/ 248/ 249/ 250/ 254	AR01.10-P-2401GT
		Models 463.243/ 246	AR01.10-P-2401MG
		Model 230.475	AR01.10-P-2400R
		Model 230.474	AR01.10-P-2400RVK
		Model 220	AR01.10-P-2400AB
		Model 209	AR01.10-P-2400PV
		Model 210 without 4-MATIC, 208, 202, 129	AR01.10-P-2400CB
		Model 211.070	AR01.10-P-2400TC
		Model 163	AR01.10-P-2400CA

Connecting rod

Crankshaft bearing cap

Fig 2: Identifying External Torx Set (001 589 76 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
