Tightening diagram of crankshaft bearing caps - AR03.20-P-4351-02BV

Tightening diagram

Tighten bolts of crankshaft bearing caps (1 to 26) in the order of the tightening diagram (1 to 26)

To loosen the bolts (1 to 26), proceed in the reverse sequence.

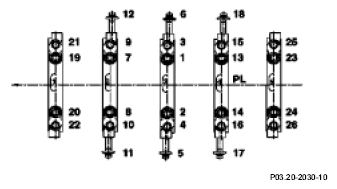

Fig 1: Identifying Diagram Of Crankshaft Bearing Caps

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
