Water-cooled Charge Air Cooler Removal/Installation: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- Remove the front under cover No. 2. (See REMOVE FRONT UNDER COVER NO. 2 .)
- Remove the front under cover No. 1. (See REMOVE FRONT UNDER COVER NO. 1 .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [H3T] .)
- Drain the water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [H3T] .)
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the capsule cover. (See CAPSULE COVER REMOVAL/INSTALLATION [H3T] .)
- Remove the cowl grille cover assembly. (See COWL GRILLE REMOVAL/INSTALLATION .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION (L.H.D.) ).
- Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
- Remove the side cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
- Remove the cowl grille bracket. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
- Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
- Remove the strut tower bar. (See DRIVER-SIDE STRUT TOWER BAR REMOVAL/INSTALLATION .) (See PASSENGER-SIDE STRUT TOWER BAR REMOVAL/INSTALLATION .)
- Remove the engine compartment insulator (upper). (See ENGINE REMOVAL/INSTALLATION [H3T] .)
- Remove the air cleaner component. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
- Remove the front under cover No. 2. (See REMOVE FRONT UNDER COVER NO. 2 .)
- Remove the front under cover No. 1. (See REMOVE FRONT UNDER COVER NO. 1 .)
- Remove the front under cover No. 3. (See REMOVE FRONT UNDER COVER NO. 3 .)
- Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Perform the high voltage handling. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
- Disconnect the ground plate. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
- Partially peel back the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
- Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
- Remove the front deflector. (See FRONT DEFLECTOR REMOVAL/INSTALLATION .)
- Remove the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the edge rubber. (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
- Remove the latch cover. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the center seal plate. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
- Remove the bracket (bumper upper side). (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
- Remove the intake air guide (upper). (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
- Remove the seal plate. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
- Remove the radiator mount bracket. (See RADIATOR REMOVAL/INSTALLATION [H3T] .)
- Remove the member bracket. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [AWD] .)
- Lower the engine 50 mm {2.0 in}. (See ENGINE MOUNT REMOVAL/INSTALLATION [H3T] .)
- Remove the PCM. (See PCM REMOVAL/INSTALLATION [H3T] .)
- Remove the turbocharger air outlet pipe No. 1 component. (See CYLINDER HEAD COVER REMOVAL/INSTALLATION [H3T] .)
- Remove the turbocharger air outlet pipe No. 2 component. (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [H3T] .)
- Remove the water-cooled charge air cooler reserve tank. (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [H3T] .)
- Remove the EGR valve. (See EGR VALVE REMOVAL/INSTALLATION [H3T] .)
- Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [H3T] .)
- Remove the intake manifold. (See INTAKE MANIFOLD REMOVAL/INSTALLATION [H3T] ).
- Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [H3T] )
- Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION [H3T] .)

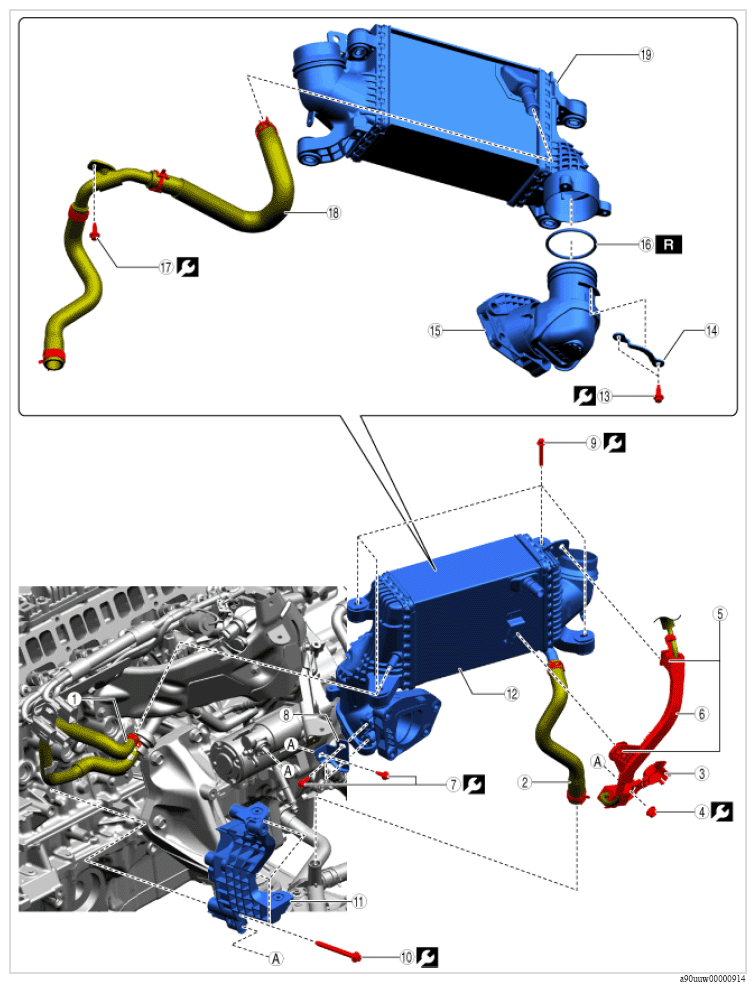

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONSStep Part name 1 Water hose
(See WATER HOSE INSTALLATION NOTE )- - 2 Water hose
(See WATER HOSE INSTALLATION NOTE )- - 3 Cap - - 4 Nut - 11 N.m {110 kgf.cm, 95 in.lbf} 5 Wiring harness clip - - 6 Terminal B cable - - 7 Bolt - 9.5 N.m {97 kgf.cm, 84 in.lbf} 8 Bracket - - 9 Bolt
(See BOLT REMOVAL NOTE )- 9.5 N.m {97 kgf.cm, 84 in.lbf} 10 Bolt - 18 N.m {1.85 kgf.m, 13.3 ft.lbf} 11 Bracket
(See BRACKET REMOVAL NOTE )- - 12 Water-cooled charge air cooler component - - 13 Bolt - 9.5 N.m {97 kgf.cm, 84 in.lbf} 14 Bracket - - 15 Water-cooled charge air cooler air outlet pipe - - 16 O-ring Replacement part - 17 Bolt - 9.5 N.m {97 kgf.cm, 84 in.lbf} 18 Water hose
(See WATER HOSE INSTALLATION NOTE )- - 19 Water-cooled charge air cooler - - - Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [H3T] .)
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [H3T] .)
- Refill the water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [H3T] .)
- Perform air bleeding of engine coolant. (See ENGINE COOLANT REPLACEMENT [H3T] .)
- Perform air bleeding of water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [H3T] .)
- Inspect for engine coolant leakage. (See ENGINE COOLANT REPLACEMENT [H3T] .)
- Inspect for water-cooled charge air cooler coolant leakage. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [H3T] .)
- Perform the 360° view monitor system aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
- Perform the radar sensor (front) aiming. (See FRONT RADAR SENSOR AIMING .)
- Perform the radar sensor (front side) aiming. (See FRONT SIDE RADAR SENSOR AIMING .)
- Perform the radar sensor (rear side) aiming. (See REAR SIDE RADAR SENSOR AIMING .)
