Bolt removal note

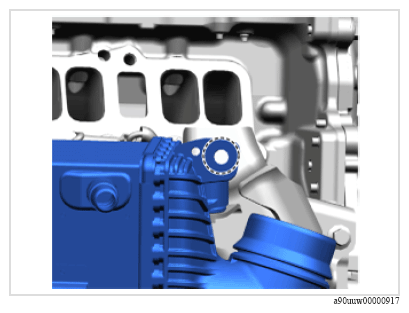

  1. Secure the water-cooled charge air cooler component to the vehicle by threading a string through the hole shown in the figure.
    G16702187Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts.
