Bracket removal note

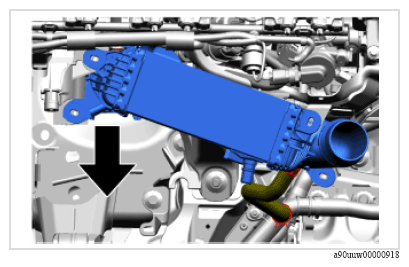

  1. Move the water-cooled charge air cooler component as shown in the figure to secure space to remove the bolts.
    G16702188Courtesy of MAZDA MOTORS CORP.
