Water hose installation note

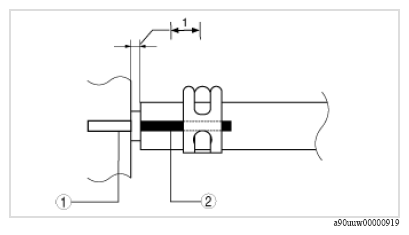

- Install the water hose as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| 1 |
Pipe marking |
| 2 |
Hose marking |
 |
0-5 mm {0-0.1 in} |

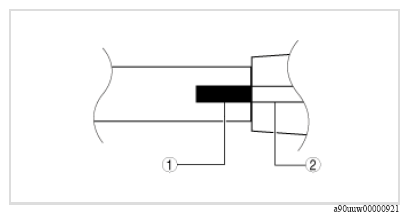

- Install the water hose as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT OPERATIONS
| Component No. |
Refer to |
| 1 |
Hose marking |
| 2 |
Pipe marking |
