High-Mount Brake Light Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
    3. Rear spoiler (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
  3. Remove the clip.

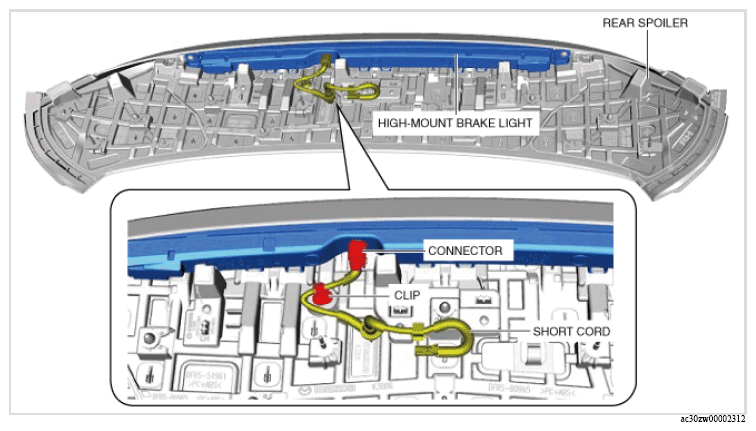

    G16377055Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the short cord.
  6. Remove the screws.

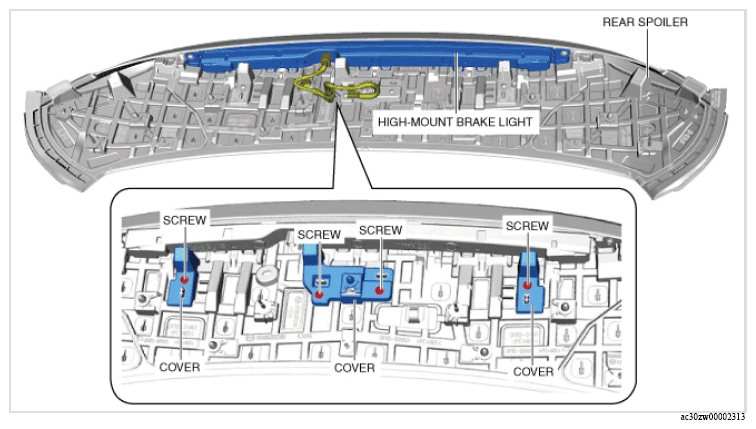

    G16377056Courtesy of MAZDA MOTORS CORP.
  7. Remove the covers.
  8. Remove the screws.

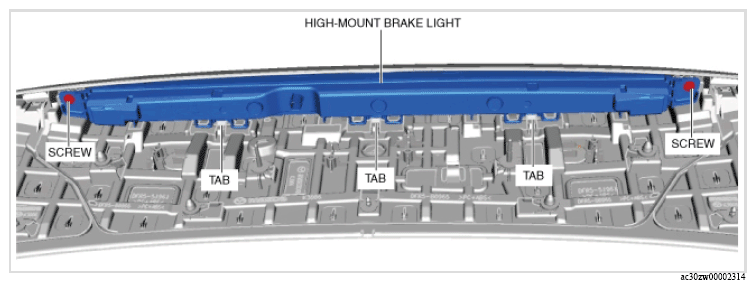

    G16377057Courtesy of MAZDA MOTORS CORP.
  9. Remove the high-mount brake light while detaching the tab.
  10. Install in the reverse order of removal.
