Rear Spoiler Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION .)
  3. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

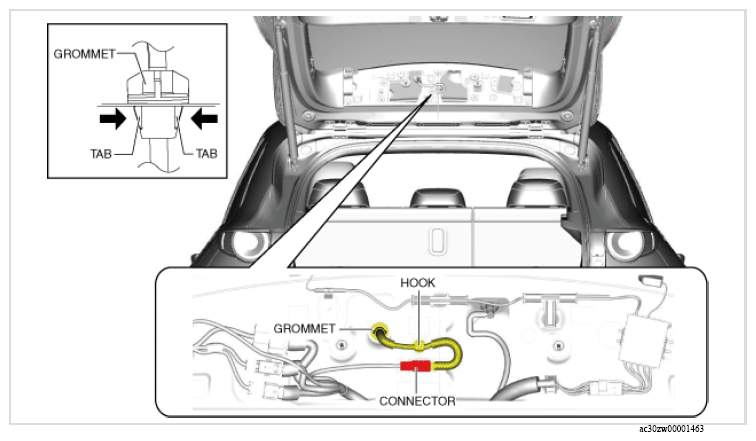

  4. Disconnect the connector and remove the wiring harness from the hook.
    G16376748Courtesy of MAZDA MOTORS CORP.
  5. Disengage the grommet tabs from the liftgate.

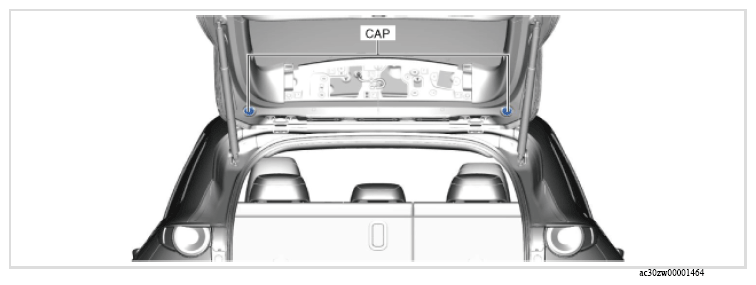

  6. Remove the caps.
    G16376749Courtesy of MAZDA MOTORS CORP.

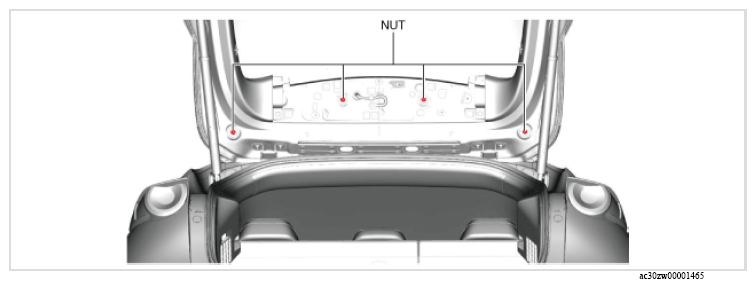

  7. Remove the nuts.
    G16376750Courtesy of MAZDA MOTORS CORP.

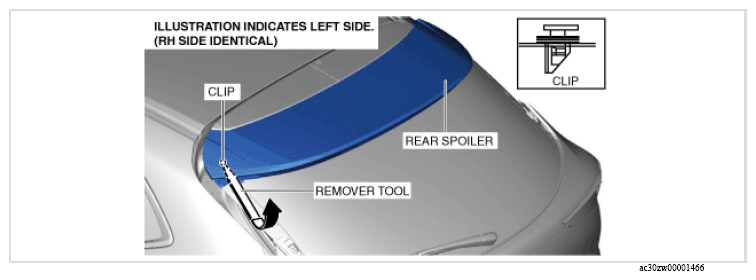

  8. Insert a remover tool in the position shown in the figure.
    G16376751Courtesy of MAZDA MOTORS CORP.
  9. Move the remover tool in the direction of the arrow shown in the figure and disengage the rear spoiler clip from the liftgate.
    CAUTION:
    • Remove the rear spoiler using two people. Otherwise, it may fall off and be damaged.

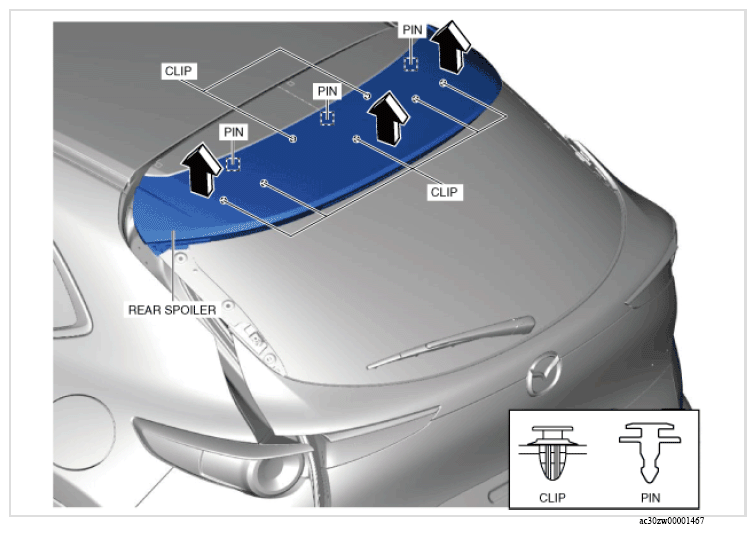

  10. Pull the rear spoiler in the direction of the arrows and remove it while detaching the pins and clips.
    G16376752Courtesy of MAZDA MOTORS CORP.

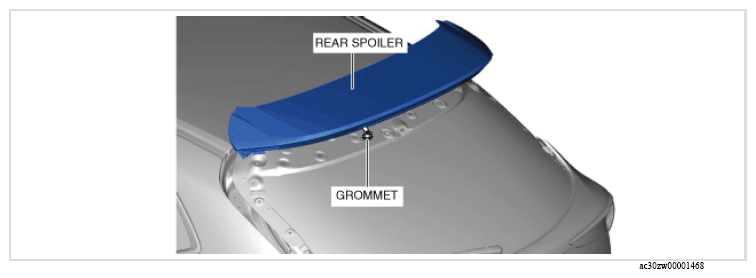

  11. Remove the rear spoiler while pulling out the wiring harness.
G16376753Courtesy of MAZDA MOTORS CORP.
NOTE:
