Side Spoiler Removal/Installation

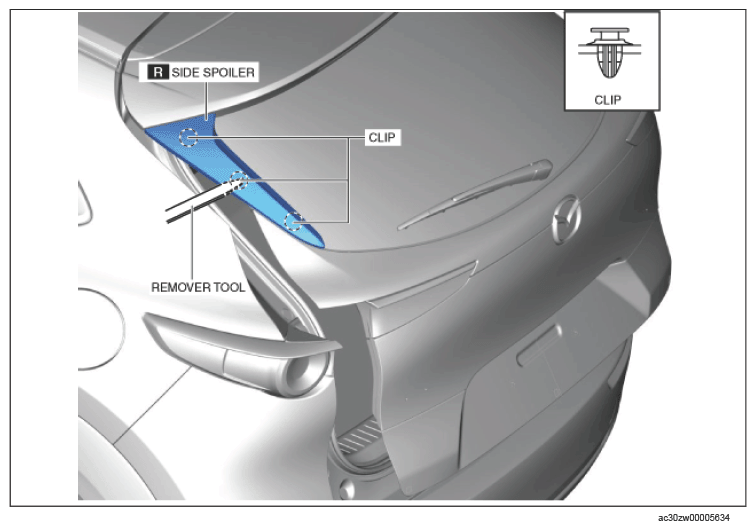

  1. Using a remover tool, remove the clips.
    G15658121Courtesy of MAZDA MOTORS CORP.
  2. Remove the side spoiler.
  3. Install in the reverse order of removal.
