Rear Spoiler Installation

  1. When a rear spoiler is to be reused, perform the following procedure:
    1. If the packing is damaged, remove bolts together with the packing.

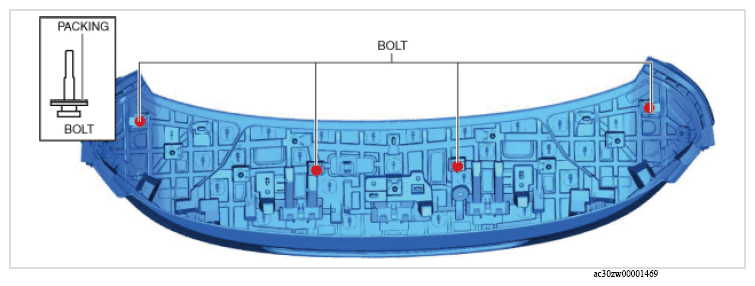

      G16376740Courtesy of MAZDA MOTORS CORP.
    2. Remove any grease and dirt from the packing affixing area.
    3. Install new bolts together with the packing.
      NOTE:
      • Packing has already been attached to the new bolt.
    4. If the protector is damaged, replace the part that is damaged with a new protector.

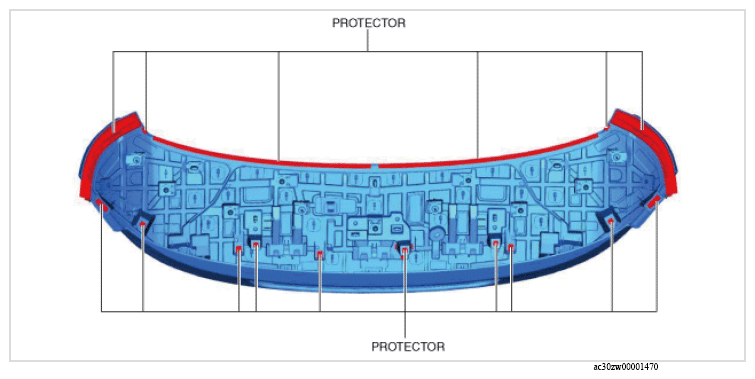

    G16376741Courtesy of MAZDA MOTORS CORP.
  2. Install the grommet of the high-mount brake light wiring harness.

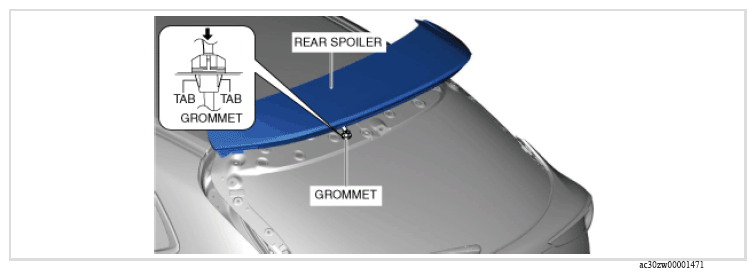

    G16376742Courtesy of MAZDA MOTORS CORP.
  3. Align the bolts to the rear spoiler installation hole.

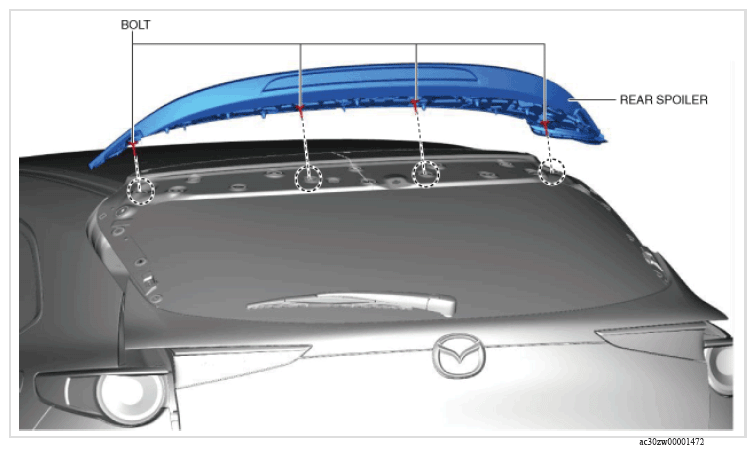

    G16376743Courtesy of MAZDA MOTORS CORP.
  4. Push the rear spoiler in the direction of the arrows in the order of (1), (2), (3), (4), (5) and install the rear spoiler.

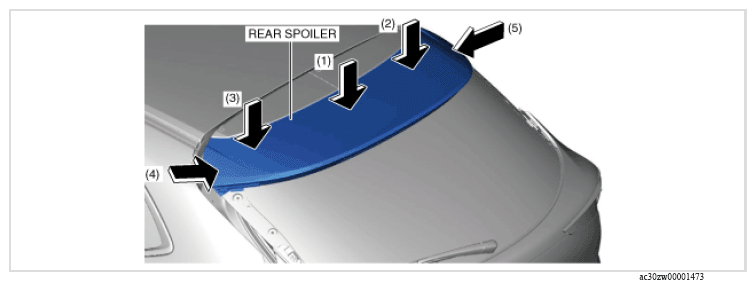

    G16376744Courtesy of MAZDA MOTORS CORP.
  5. Install the nuts shown in the figure, and install the rear spoiler.
    Fig 1: Rear Spoiler Nuts With Torque Specification

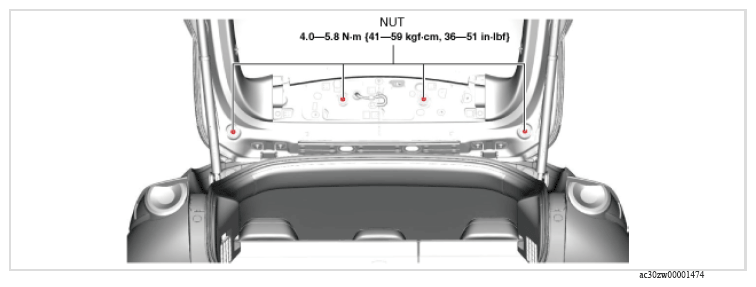

    G16376745Courtesy of MAZDA MOTORS CORP.
  6. Install the caps shown in the figure.

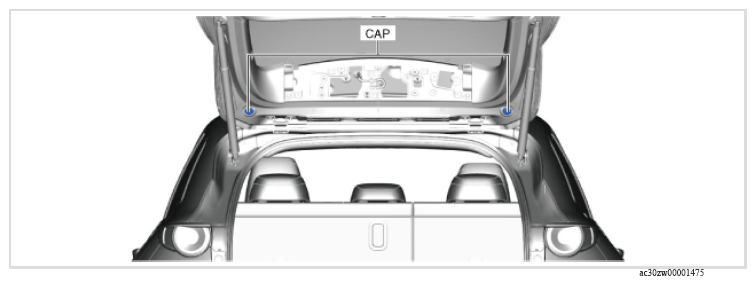

    G16376746Courtesy of MAZDA MOTORS CORP.
  7. Connect the connector and install the wiring harness to the hook.

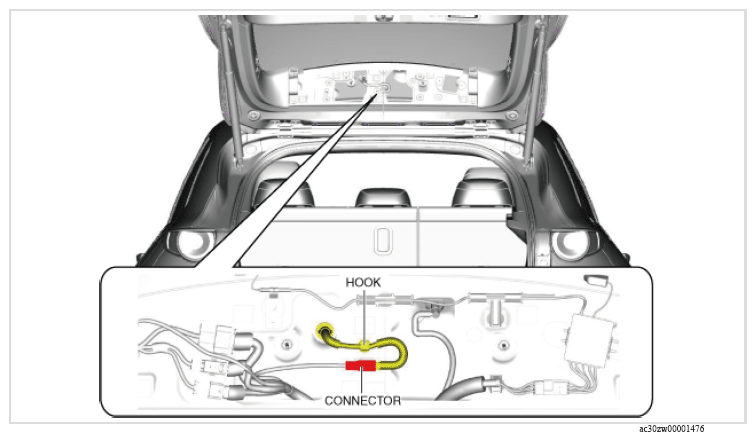

    G16376747Courtesy of MAZDA MOTORS CORP.
  8. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  9. Install the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION .)
  10. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
