Transmission Parts

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

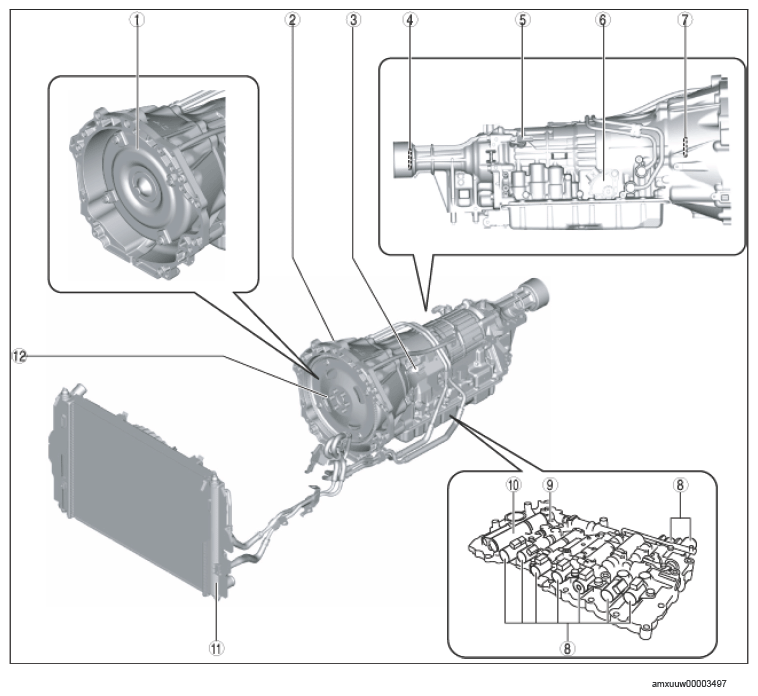

PART DESCRIPTION

Component no.	Refer to
1	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION .)
2	Automatic transmission (See MECHANICAL SYSTEM TEST .) See ROAD TEST .) See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION .) See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT .) See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .) See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .) See POWER PLANT FRAME REMOVAL/INSTALLATION .) (See INITIAL LEARNING PROCEDURE .)
3	Turbine sensor (See TURBINE SENSOR INSPECTION .) (See TURBINE SENSOR REMOVAL/INSTALLATION .)
4	Oil seal (extension housing) (See OIL SEAL (EXTENSION HOUSING) REPLACEMENT .)
5	Vehicle speed sensor (VSS) See VEHICLE SPEED SENSOR (VSS) INSPECTION .) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION .)
6	Transmission range (TR) switch (See TRANSMISSION RANGE (TR) SWITCH INSPECTION .) See TRANSMISSION RANGE (TR) SWITCH REMOVAL/INSTALLATION .) (See TRANSMISSION RANGE (TR) SWITCH ADJUSTMENT .)
7	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT .)
8	Solenoid valve (See SOLENOID VALVE INSPECTION .)
9	Transmission fluid temperature (TFT) sensor (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR INSPECTION .) (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION .)
10	Control valve body (See CONTROL VALVE BODY REMOVAL .) (See CONTROL VALVE BODY INSTALLATION .)
11	Oil cooler (See OIL COOLER FLUSHING .) (See OIL COOLER REMOVAL/INSTALLATION .)
12	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION .)
