Oil Seal (Extension Housing) Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Clean the transmission exterior thoroughly with a steam cleaner or cleaning solvent.
  2. Remove the tunnel member.

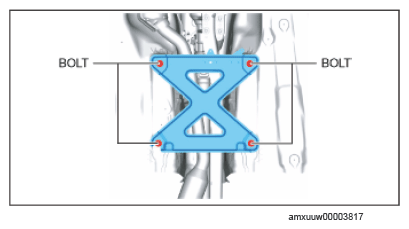

    G14589383Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the HO2S harness bracket from the TWC. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  4. Disconnect the TWC from the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  5. Suspend the TWC using a cable as shown in the illustration.

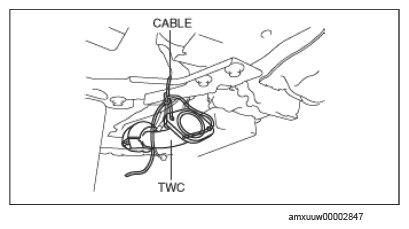

    G14589384Courtesy of MAZDA MOTORS CORP.
  6. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  7. Using a plastic hammer and slab of wood, tap the extension dust deflector to remove it.

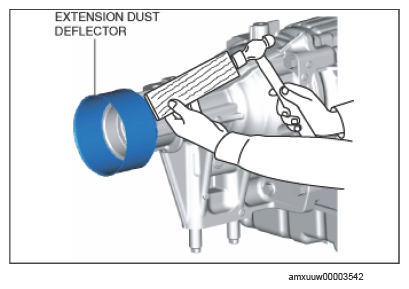

    G14589385Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not to damage the extension dust deflector.
    • Do not to damage the extension housing.
  8. Using a tape-wrapped flathead screwdriver, remove the extension housing shroud.

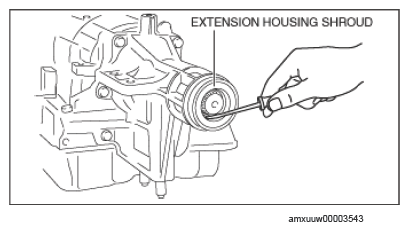

    G14589386Courtesy of MAZDA MOTORS CORP.
  9. Using a tape-wrapped flathead screwdriver, remove the oil seal (extension housing).

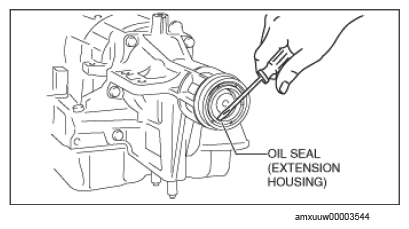

    G14589387Courtesy of MAZDA MOTORS CORP.
  10. Using the SSTs and a hammer, install the new oil seal to the extension housing.
    G14589388Courtesy of MAZDA MOTORS CORP.
  11. Coat the oil seal lip with grease.
  12. Using the SSTs and a hammer, install the new extension housing shroud to the extension housing.
    G14589389Courtesy of MAZDA MOTORS CORP.
  13. Using a plastic hammer and slab of wood, install the extension dust deflector to the extension housing.

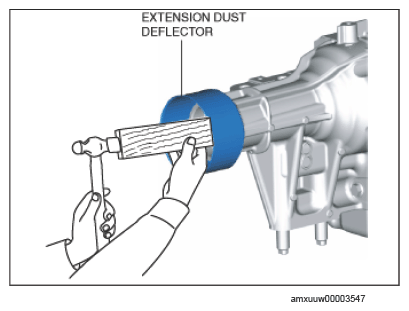

    G14589390Courtesy of MAZDA MOTORS CORP.
  14. Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  15. Connect the TWC to the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  16. Connect the HO2S harness bracket to the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  17. Install the tunnel member.

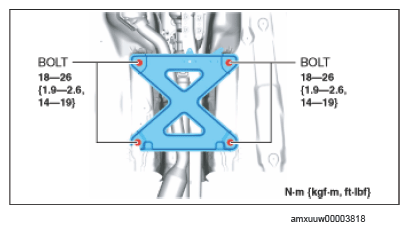

    Fig 1: Tunnel Member Bolts With Torque Specification
    G14589391Courtesy of MAZDA MOTORS CORP.
  18. Adjust the ATF level. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .)
