CENTER PANEL No. 2 REMOVAL/INSTALLATION

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

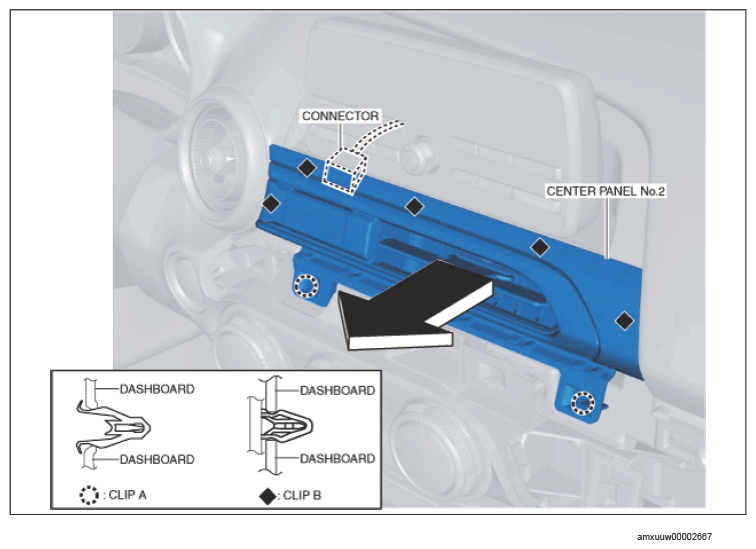

  3. Move the center panel No. 2 in the direction of the arrow shown in the illustration, and detach clips A and B from the dashboard.
    G14602956Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the center panel No. 2.
  6. Install in the reverse order of removal.
