Passenger-Side Lower Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Remove the seaming welt.
  4. Remove the bolt.

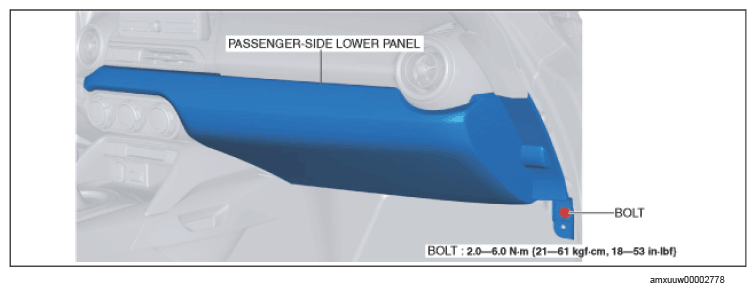

    Fig 1: Passenger-Side Lower Panel Bolt With Torque Specification
    G14603042Courtesy of MAZDA MOTORS CORP.

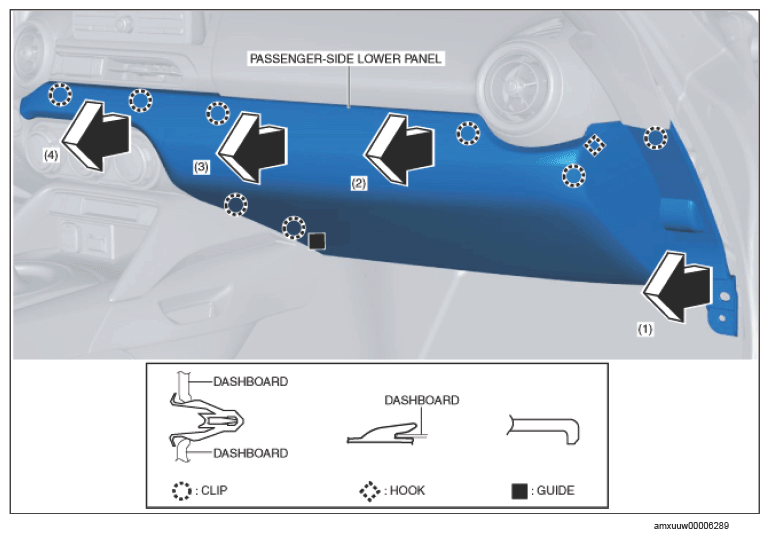

  5. Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the illustration, and detach the clips, hook and guide from the dashboard.
    G14603043Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
